Is 24 VAC low voltage?

It is standard in lighting, while “low voltage (12v or 24v) lighting” is used less commonly. Line voltage lighting systems typically use 120v or 277v to supply power to lighting fixtures.

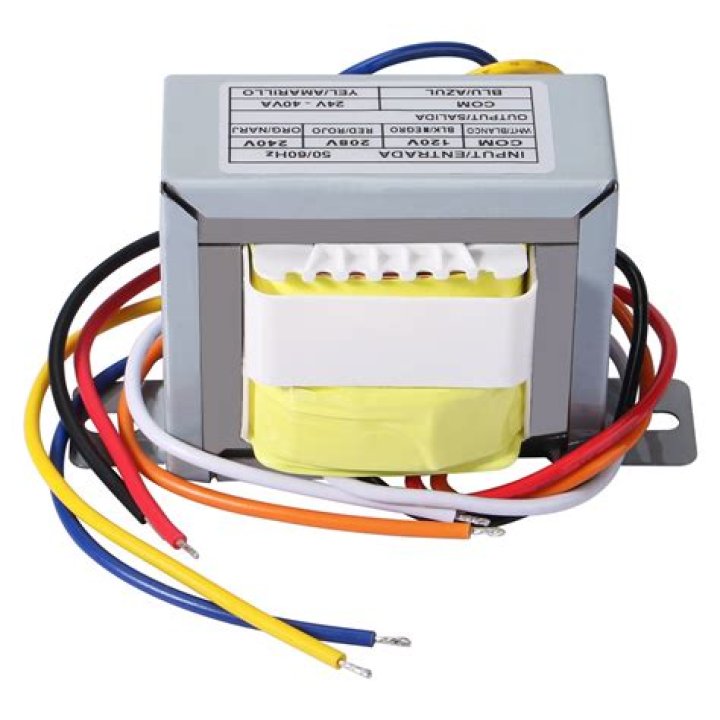

What is a 24 VAC transformer?

A 24 VAC (volt alternating current) transformer is a step-down type of transformer. The device typically converts 120 VAC to a lower voltage for use in push buttons. The most common application for a 24 VAC transformer is to activate a doorbell chime.

Is 24VAC the same as 12VDC?

24VAC can run longer distances than 12VDC. It isn’t because of the alternating current, but because of the 24V. To supply 24 Watts will require 1 amp at 24VAC and 2 amps at 12V. The voltage drop in a wire is proportional the amps only.

Is 24V safe?

Unlike AC power, 24V DC does not require the use of personal safety equipment. Maintenance can be performed safely on energized circuits. If an accident occurs that exposes 24V DC wiring, there is no potential for personnel injury. Because power is limited, equipment is also well protected.

Does 24VAC need to be in conduit?

Most codes require line-voltage wiring to be installed in protected runs, such as conduit. This wiring is low voltage (Class 2, typically 10–24V DC) and provides a pathway for communication of analog or digital signals, such as incoming sensor input data—e.g., light levels, occupancy conditions—and outgoing commands.

Can I use 24VAC for 24VDC?

24 volt AC/DC converters with 19 to 28 VAC input. These are also known as 24 volt rectifiers, and voltage regulators. They can be used whenever 24VAC power is available and 24VDC power is needed, up to 60 watts.

What is VAC power?

There is no such thing as VAC power – it is just AC power. When you see 110 VAC on an appliance, it means 110 volts AC power. Voltage is a measure of “circuit pressure.” It refers to how hard the electricity pushes through a circuit. AC is also measured in frequency–how fast it changes direction.

What uses 24v transformer?

We see 24VAC transformers all around the mechanical room. They are used to run thermostats, humidifiers, zone valves, demand signals for boilers, furnaces and many other units in the mechanical room.

Can I use 24Vac for 24VDC?

What is a 24 VAC thermostat?

The most common type of voltage from a central heating and/or cooling system is 24 volts (24Vac). The old thermostat may say somewhere on the thermostat that it is for 24 volt (24Vac) or maximum 30 volts (30Vac). If you see 120 Vac or 240 Vac on the thermostat, a low voltage thermostat will NOT work with your system.

Can you get a shock from 24VDC?

Yes, you can get electrocuted at lower voltages but you’d have to really work at it. Most high voltage circuits that you are likely to come in contact with have an internal resistance that is high enough that they can not source a high enough current to do damage, that’s why you perceive high voltages as safe.
