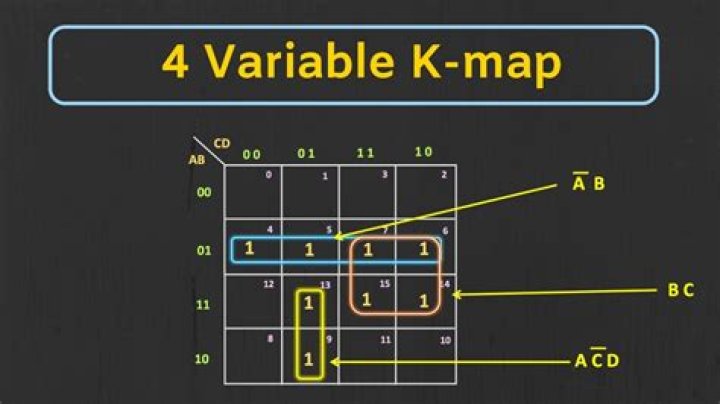

4-variable K-Map 4 variables have 2n=24=16 minterms. So a 4-variable k-map will have 16 cells as shown in the figure given below. Each cell (min term) represent the variables in front of the corresponding row & column.

How many Minterms are there for 4 variables?

The maximum minterm for 4 variable is 2 4 -1=15.

What is minterm in K-map?

Minterm. A minterm is a Boolean expression resulting in 1 for the output of a single cell, and 0s for all other cells in a Karnaugh map, or truth table. If a minterm has a single 1 and the remaining cells as 0s, it would appear to cover a minimum area of 1s.

Which code is used in K-map for representing the Minterms?

Gray code
K-maps are a visual representation of a Boolean function. K-maps contain cells corresponding to each minterm for a function. The ordering of these cells is done using the Gray code (00, 01, 11, 10) in order to show adjacency between cells. In other words, each cell’s neighbor has only one differing bit between them.

How do you make a K-map with 4 variables?

Fold up the corners of the map below like it is a napkin to make the four cells physically adjacent. The four cells above are a group of four because they all have the Boolean variables B’ and D’ in common. In other words, B=0 for the four cells, and D=0 for the four cells.

How many Minterms are needed for 4 variables Mcq?

Therefore, 24= 16 minterms are needed.

How many minterms are needed for 4 variables Mcq?

How do I find the number of minterms?

Example 2: Minterm = AB’C’

1. First, we will write the minterm: Minterm = AB’C’
2. Now, we will write 0 in place of complement variables B’ and C’. Minterm = A00.
3. We will write 1 in place of non-complement variable A. Minterm = 100.
4. The binary number of the minterm AB’C’ is 100. The decimal point number of (100)2 is 4.

How do you make a K map with 4 variables?

How do I find my minterm?

Example 1: Maxterm = A+B’

1. First, we will write the minterm: Maxterm = A+B’
2. Now, we will write 0 in place of complement variable B’.
3. We will write 1 in place of non-complement variable A.
4. The binary number of the maxterm A+B’ is 10. The decimal point number of (10)2 is 2. So, the shorthand notation of A+B’ is.

Which code is used for K-map Labelling?

In K-maps, the rows and the columns of the table use Gray code-labeling which in turn represent the values of the corresponding input variables.
