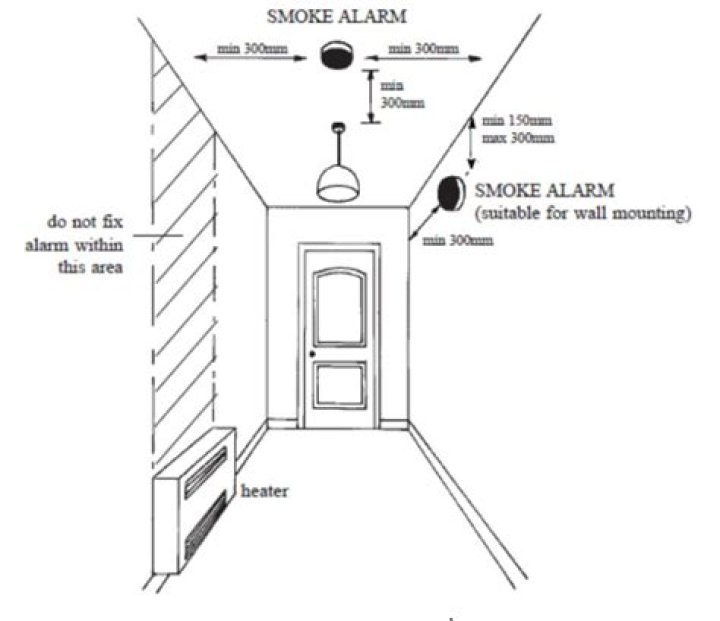

How many feet from the end of a corridor shall a horn strobe be placed

For corridors, NFPA specifies strobe location not more than 15 ft. from the end of the corridor, with a maximum separation of 100 ft..

Where should I place my horn strobe?

NFPA 72 requires strobes installed in hallways and corridors to be visible from anywhere. The code states these specific requirements: Strobes must be installed no further than 100 feet apart down the length of a hallway. Strobes must be located within 15 feet of either end of a hallway.

What is maximum height for fire alarm strobe?

These devices are perfect for rooms with a high ceiling, generally above 40 feet. Ceiling-mounted strobes can’t be mounted higher than 30 feet above the floor.

What is the spacing distance requirements for strobes in corridors can they be mounted on the wall and counted for this spacing?

Strobes shall be located not more than 15 feet from the end of the corridor with a separation of not more than 100 feet between appliances, and the strobes may be mounted on either side of the corridor.

What is the minimum mounting height of a FA horn strobe?

Wall-mounted fire strobes must be placed 80 to 96 inches above the floor and at least six inches from the ceiling in all non-sleeping areas. Ceiling-mounted fire strobes should not be more than 30 feet above the floor.

How many horn strobes does a NAC circuit have?

NOTE: The total number of strobes on a single NAC must not exceed 40 for 24 volt applications or 12 for 12 volt applications.

Are horn strobes required in offices?

Individual employee work areas such as offices and workstations are not required to have visual strobes, unless accommodating hearing impaired employees and they must contain audible alarms and notifications.

Do fire alarm strobes need to be in sync?

In a corridor, “when more than 2 visible notification devices are in any field of view, they shall flash in synchronization.” So technically, if just two strobes are in the overall field of view (including non-direct viewing), they don’t need to be synchronized to meet NFPA 72 requirements.

What is the UL 1971 listing in reference to fire alarm systems?

UL 1971 sets out performance criteria for fire alarm strobes. UL then tests products submitted by manufacturers in controlled settings to determine whether they meet the criteria prescribed by the standard. If they do meet those criteria, the product is listed to that standard.

What is the height of a fire alarm pull station?

Manual Fire Alarm Boxes (Pull Stations) – The height of the manual fire alarm boxes shall be a minimum of 42 inches and a maximum of 54 inches measured vertically, from the floor level to the activating handle or lever of the box. Manual fire alarm boxes shall be red in color.

Article first time published on

What are horn strobes?

Horn strobes combine audible and visual alarms to alert the occupants to evacuate the premises.

How does a horn strobe work?

There’s a diode inside the horn or strobe to prevent the current from going through. It’s only when the panel is in alarm that the wire marked positive has “+” voltage and the wire marked negative has “-” voltage. That’s when electrical current should go through the horn or strobe so that it sounds off or flashes.

How does a fire alarm strobe work?

A fire alarm strobe flashes at a constant rate and brightness, even when its voltage changes up or down. … When on batteries, the voltage of the panel decreases. In a fire alarm system, strobes are notification appliances; the flashing strobes get people’s attention. They’re also constant power devices.

Can you paint fire alarm strobes?

BACKGROUND: It is widely assumed that wire, j-boxes, horns, strobes, annunciators, fire alarm control panels and other such equipment is required to be red in color. This isn’t true. FACT: The only thing required to be the color red in commercial fire alarm systems by NFPA 72, is “the circuit disconnect means”.

Are horn strobes required in restrooms?

NFPA101, International Building Code (IBC), and American’s with Disabilities Act (ADA). Firstly, it is clear that visual strobes should be installed in public areas anticipated to be used by hearing impaired individuals such as restrooms, hallways and building lobbies.

What is the fastest rate that a fire alarm strobe may flash?

Strobes are designed to flash at 1 flash per second minimum over their “Regulated Voltage Range”. Note that NFPA-72 specifies a flash rate of 1 to 2 flashes per second and ADA Guidelines specify a flash rate of 1 to 3 flashes per second. All candela ratings represent minimum effective Strobe intensity based on UL 1971.

What is the distance between horn strobes?

NFPA requires strobes to be located so that the light can be seen regardless of the viewer’s orientation, with maximum spacing between devices (like the ADA), not to exceed 100′.

Where are notification appliances required?

Fire alarm notification appliances are required to be provided in all common-use and public- use exterior areas where the occupants must re-enter the building to reach one or more of the required exits. Exterior areas with all exit(s) having direct access to a public way shall not require notification.

Where are notification devices required?

The code does require that when the alarm signals are used for occupant notification, there must be at least one notification appliance listed for the purpose in each notification zone of the building, and that the appliances should be located so that they have the characteristics described in Chapter 18 for public …

What does NAC mean fire alarm?

A: Each NAC (Notification Appliance Circuit) in a fire alarm panel or booster power supply has a maximum current rating. This information can be found in the manuals provided with the panels. The total current draw for all the devices connected to the circuit cannot exceed the NAC rating.

How many devices can you put on a NAC circuit?

Four Class B or two Class A NAC circuits. SLC Loop: SLC can be configured for NFPA Style 4, 6, or 7 operation. SLC supports up to 318 addressable devices per loop (159 detectors and 159 monitor, control, or relay modules), including the new addressable dual-monitor module, heat detectors, and duct detector.

What shall be the flash rate requirement of visible Signalling device?

3.1. The flash rate shall not exceed two flashes per second (2 Hz) nor be less than one flash every second (1 Hz) throughout the listed voltage range of the appliance.

Can fire alarm strobes cause seizures?

According to WebMD.com, flashing lights or exposure to bold, contrasting patterns can trigger seizures in people with photosensitive epilepsy.

What is maximum distance between two manual call points?

Manual Call Points should be spaced so that one may always be found within a maximum distance of 45m apart or 25m for disabled person.

What are pull stations?

A fire alarm pull station is a manually activated component of a fire alarm system. Usually a red box mounted on a wall, these stations are clearly labeled with instructions on how to use them.

Where are you most likely to locate a fire alarm pull station?

NFPA 72 requires a pull station within 60 inches of every individual exit, and for groups of doors that are more than 40 feet wide away from each other, there must be a pull station on both sides of the grouping. The placement of fire alarm pull stations is critical to ensuring they provide the protection intended.

How far can a fire alarm pull station be from a door?

NFPA 72 requires that manual pull stations be installed within 60 inches of the exit doorway of each exit, mounted between 42 inches and 48 inches to the center of the handle, and, among other things, be red in color. Below we have an picture of a typical manual pull station.

Where should fire alarm panels be located?

The equipment should normally be sited in an area of low fire risk and on the ground floor by the entrance used by the Fire and Rescue Service and preferably viewable from outside of the building.

Why is strobe synchronization used to synchronize all strobes in a uniform flash pattern?

Today, strobe synchronization is often used to synchronize all strobes in a uniform flash pattern. This is to prevent individuals with photosensitive epilepsy from potentially experiencing seizures due to unsynchronized strobes.

What are notification devices in fire alarm?

A fire alarm notification appliance is an active fire protection component of a fire alarm system. A notification appliance may use audible, visible, or other stimuli to alert the occupants of a fire or other emergency condition requiring action.

What is horn in building construction?

Horn is projecting portion of head which is inserted into wall to support the frame into wall.
