How is beamwidth antenna calculated?

How is beamwidth antenna calculated?

Antenna size and beamwidth are also related by the beam factor defined by: Beam Factor = (D/8)@(Beamwidth) where D = antenna dimension in wavelengths. The beam factor is approximately invariant with antenna size, but does vary with type of antenna aperture illumination or taper.

How is gain of an antenna related to its beam width?

Antenna gain also has a direct correlation to both antenna directivity and beamwidth. Higher gain antennas achieve extra power by focusing on a reduced area; thus, the greater the gain, the smaller the area covered (measured in degrees of beamwidth). Antenna gain and beamwidth always are inversely proportional.

How is antenna gain calculated?

Gain is calculated by comparing the measured power transmitted or received by the antenna in a specific direction to the power transmitted or received by a hypothetical ideal antenna in the same situation.

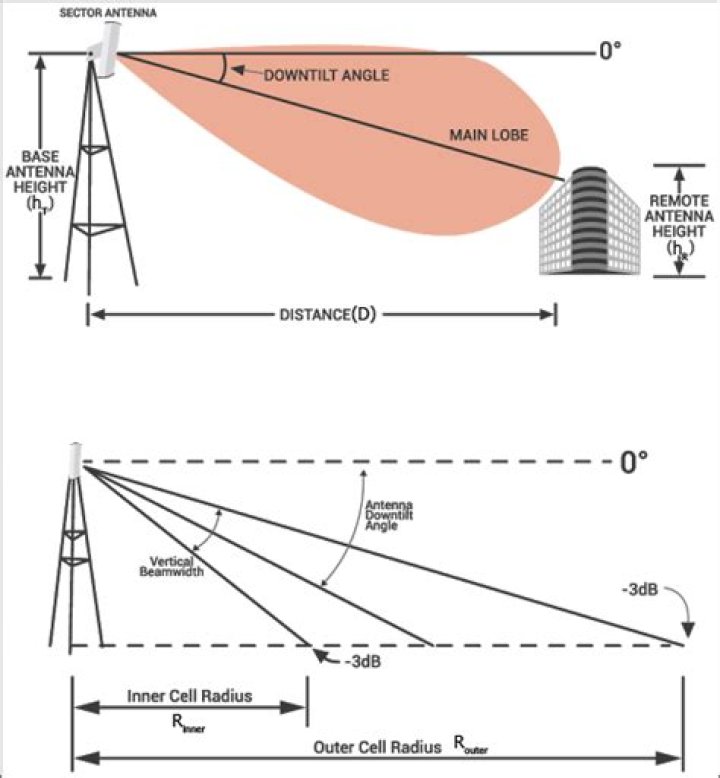

What does the beam width of an antenna represents?

What does the beam width of an antenna tell us? Explanation: The measure of an antenna’s directivity is beam width, the angle of the radiation pattern over which a transmitter’s energy is directed or received. Beam width is measured on an antenna’s radiation pattern.

How is antenna ERP calculated?

To calculate ERP, Take the transmitter power output, subtract the losses from the duplexers, subtract any measurable feedline loss and add the antenna gain. Example: (2 dBd combined duplexer and feedline loss) + (5 dBd antenna gain)= 3 dBd gain.

How is antenna efficiency calculated?

Antenna Efficiency is the ratio of power radiated (Prad) by the antenna to the power supplied (Ps) to the antenna. The efficiency of an antenna is usually measured in an anechoic chamber where an antenna is fed with some power and the strength of the radiated electromagnetic field in the surrounding space is measured.

What is dB in antenna?

dB is antenna gain in decibels reference to how much times gainincrease there is with respect to 1(0dB) . dBi is antenna gain with respect to isotropic antenna. Since isotropic antenna has gain 1 ( 0 dB) thats why here dB and dBi are same. Gain of 3 dB means 2 times increase in gain.

What is bandwidth of an antenna?

– Bandwidth The bandwidth of an antenna refers to the range of frequencies over which the antenna can operate correctly. The antenna’s bandwidth is the number of Hz for which the antenna will exhibit an SWR less than 2:1. The bandwidth can also be described in terms of percentage of the center frequency of the band.

Why antenna gain is measured in dBi?

dBi is antenna gain with respect to isotropic antenna. Since isotropic antenna has gain 1 ( 0 dB) thats why here dB and dBi are same. Gain of 3 dB means 2 times increase in gain. gain of 10dB is 10 times increase in gain and so on.

How is antenna power calculated?

P R ∝ G × P T f 2 × d α , where f is the carrier frequency, d is the propagation distance, G is the power gain from the transmit and receive antennas, and α = 2.

What is antenna gain and antenna efficiency?

Antenna Gain is the ratio of power transmitted in a certain direction with a specific reference point. Relation between gain and efficiency is G = e x D where D is the directivity and E if the efficiency Antenna efficiency is how much RF power delivered to the antenna (from radio) is actually transmitted into the air.
