How GSM is connected to Arduino?
Robert Miller
Published Mar 19, 2026
How GSM is connected to Arduino?
The Arduino GSM shield allows an Arduino board to connect to the internet, send and receive SMS, and make voice calls using the GSM library. The shield will work with the Arduino Uno out of the box. The shield will work with the Mega, Mega ADK, Yun, and Leonardo boards with a minor modification.

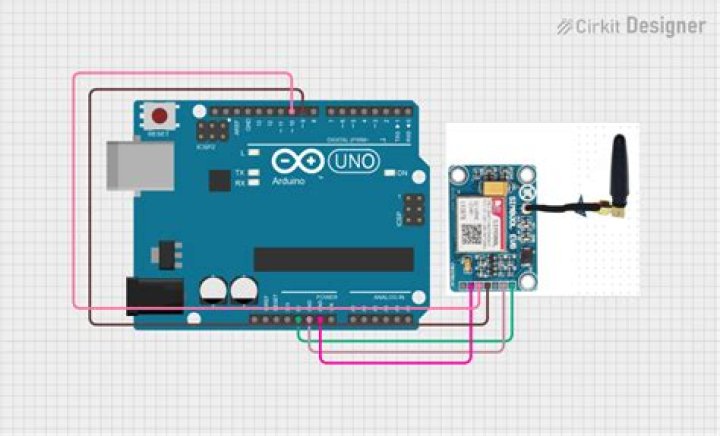

How do I connect Arduino Uno to GSM module?
Booting the GSM Module!
- Insert the SIM card to GSM module and lock it.
- Connect the adapter to GSM module and turn it ON!
- Now wait for some time (say 1 minute) and see the blinking rate of ‘status LED’ or ‘network LED’ (GSM module will take some time to establish connection with mobile network)
How do I interface a GSM and GPS module with Arduino?
About this project
- Step 1: Connect the TX and RX Pin of the GPS to D3 and D4.
- Step 2: Connect the LCD to the D8 to D13 of the Arduino Board.
- Step 3: Add Tiny GPS Library.
- Step 4: Download the Arduino Code From the Attachment.
- Step 5: Type “TRACK VEHICLE” to the Sim on the Sim Module.
How do I connect to GSM?
To set up and configure mobile connectivity for a GSM-based device:
- Obtain an account with your carrier of choice.
- Install the SIM card in the device.
- Power on the device.
- Go to the Mobile Connectivity page.
- Under the Current Settings, enter the connection settings for the cellular modem in the device.
What is the best GSM module for Arduino?
SIM900 is the most popular GSM/GPRS module model out there. This module comes in 3 variants namely – SIM900, SIM900A and SIM900D. Out of these 3 model variants, SIM900 – is the only Quad Band (supporting all 4 frequency bands – 850/900/1800/1900 Mhz)) GSM module model.
WHAT IS AT commands for GSM modem?
AT commands are instructions used to control a modem. AT is the abbreviation of ATtention. Many of the commands that are used to control wired dial-up modems, such as ATD (Dial), ATA (Answer), ATH (Hook control) and ATO (Return to online data state), are also supported by GSM/GPRS modems and mobile phones.
What is the difference between SIM800 and SIM900?
SIM800 is the newly released alternate to SIM900 having the same functionality as SIM900 with additional Bluetooth/FM support. Hardware Differences : Voltage range : SIM900 supply voltage ranges from 3.2V to 4.8V whereas SIM800 has reduced supply voltage range of 3.4V to 4.4V.
What are 3gpp 80 commands?
SMS commands (3GPP TS 27.005)
| Command | Description |
|---|---|
| AT+CSCB | Select cell broadcast message types |
| AT+CNMI | New message indications to TE |
| AT+CMGL | List messages |
| AT+CMGR | Read message |
What is the function of at CMGF 1 R?
The AT+CMGF command sets the GSM modem in SMS Text Mode or SMS PDU Mode. In Text Mode, SMS messages are represented as readable text.
What is the difference between GSM module and GSM modem?
A GSM module or GPRS modules are similar to modems, but there’s one difference: A GSM/GPRS Modem is an external equipment, whereas the GSM/GPRS module is a module that can be integrated within an equipment. It is an embedded piece of hardware.
What is difference between GSM 300 and GSM 900 module?
SIM900 is a quad band modem being able to operate in 850,900,1800,1900 MHz bands and offers improved GPRS functionalities useful in web enabled applications. SIM300 is a triband GSM modem being able to operate only in 900,1800,1900MHz band. SIM900 and the SIM300 modem operate from 3.4V to 4.5V supply range.
