How does Zener diode drop voltage?
Zener Diodes can be used to produce a stabilised voltage output with low ripple under varying load current conditions. By passing a small current through the diode from a voltage source, via a suitable current limiting resistor (RS), the zener diode will conduct sufficient current to maintain a voltage drop of Vout.
Does a Zener diode reduce voltage?
A Zener diode’s design has the special property of reducing a reverse voltage to a specified value. This makes Zener diodes good, low-cost voltage regulators. To use one in a circuit, you calculate a resistor value, then connect the resistor and Zener across the voltage you want to regulate.
How does Zener diode regulate voltage?
Zener diodes are used for voltage regulation, as reference elements, surge suppressors, and in switching applications and clipper circuits. The load voltage equals breakdown voltage VZ of the diode. The series resistor limits the current through the diode and drops the excess voltage when the diode is conducting.
What is the theory of Zener diode?

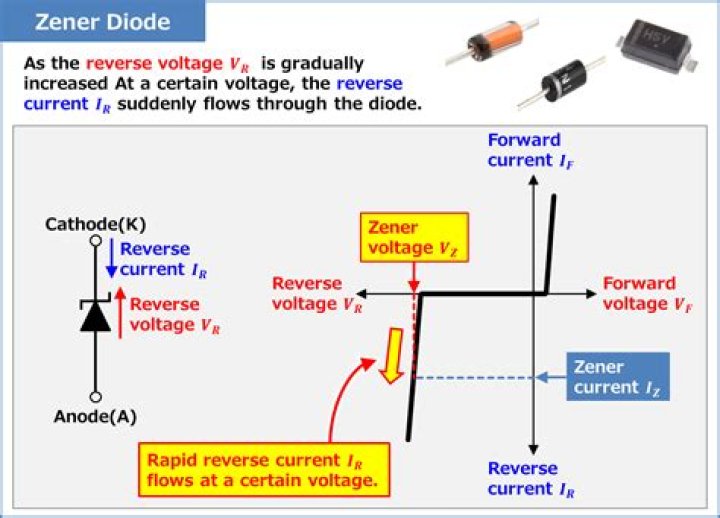

The Zener diode is like a general-purpose signal diode. When biased in the forward direction it behaves just like a normal signal diode, but when a reverse voltage is applied to it, the voltage remains constant for a wide range of currents. Reverse voltage can increase until the diode breakdown voltage reaches. …
How do you reduce DC voltage?
The simplest way to reduce voltage drop is to increase the diameter of the conductor between the source and the load, which lowers the overall resistance. In power distribution systems, a given amount of power can be transmitted with less voltage drop if a higher voltage is used.
Can I use diode to reduce voltage?
The diodes will only move power loss from the regulator to the diodes themselves. In this case it should be fine, but diodes do not drop a fixed voltage; the voltage drop varies depending on current in a non-linear fashion.
Does diode reduce voltage?
Diodes allow electricity to flow in only one direction, but a diode will only conduct electricity, when the supply reaches its threshold. The threshold for common silicon diodes is 0.6 volts. After each diode, the voltage can be seen to drop by 0.6 volts. In this way, diodes can be used to reduce voltage, in a circuit.
How does a diode reduce voltage?
1. Use a resistor: Connect a resistor with DC supply in series with the load so that when you turn on dc supply, basically the load takes required voltage and the resistor dissipates the remaining voltage in the form of heat.
How do you reduce voltage?
What is Zener breakdown voltage?
A normal p-n junction diode allows electric current only in forward biased condition. This sudden rise in electric current causes a junction breakdown called zener or avalanche breakdown. The voltage at which zener breakdown occurs is called zener voltage and the sudden increase in current is called zener current.
How is zener voltage calculated?
The 3SMAJ5927B is a 12 V Zener diode in a 3 W package. It’s knee current, breakdown current, or minimum current is 0.25 mA. The maximum current is calculated by dividing the power rating by the Zener voltage: I=P/V = 3W/12V = 0.25A.
What can be used to reduce voltage?
A resistor will reduce voltage, but only when a current is flowing through it. A variable resistor can vary the amount of voltage dropped, though there must be current running through it.
What is a Zener diode and how does it work?
A Zener diode is a particular type of diode that, unlike a normal one, allows current to flow not only from its anode to its cathode, but also in the reverse direction, when the Zener voltage is reached.
How can I identify Zener diodes?
Zener Diode Identification and Uses Introduction. A zener diode is a silicon diode that is optimized to work in what is known as the breakdown region. Testing. Zeners are tested the same way you would a regular diode. Identification. Zeners may be indistinguishable from regular diodes. References. Malvino, Alfred. Resources
What’s the purpose of the Zener diodes?
Signal Sensing in the Control Box. If there is nothing connected to the screw terminals on the control box at P4 (?),the voltage becomes the full power supply voltage
What is the current, IZM, of a Zener diode?
Current : The current, IZM, of a Zener diode is the maximum current that can flow through a Zener diode at its rated voltage, VZ. Typically there is also a minimum current required for the operation of the diode. As a rough rule of thumb, this can be around 5 to 10 mA for a typical leaded 400 mW device.
