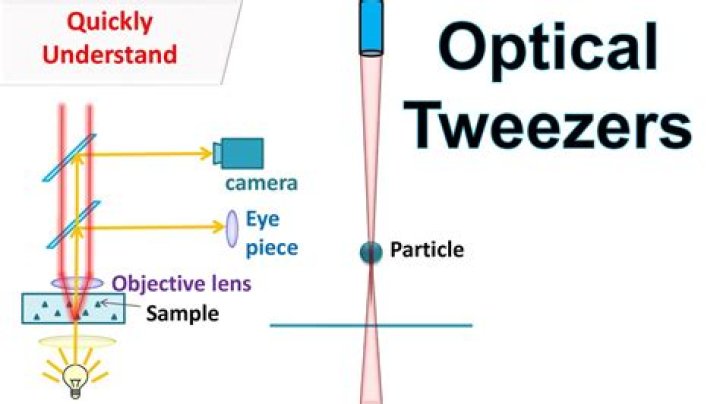

How does optical tweezers work?

As their name suggests, optical tweezers use beams of light to hold and manipulate microscopically small objects such as biological molecules or even living cells. They are formed when a laser beam is tightly focussed to a tiny region in space using a microscope objective as a lens.

Who invented optical tweezer?

Arthur Ashkin
Arthur Ashkin invented optical tweezers that grab particles, atoms, molecules, and living cells with their laser beam fingers. The tweezers use laser light to push small particles towards the center of the beam and to hold them there. In 1987, Ashkin succeeded in capturing living bacteria without harming them.

What is optical levitation?

In optical levitation a laser is used to produce a beam of light directed towards a small (comparable to the size of the laser beam) object. The laser beam will exert a force on the object due to the radiation pressure which can oppose gravity and cause an the object to levitate.

What is scattering force?

Scattering Force: One of the two arising forces is the scattering force due to the radiation pressure on the particle. Incident radiation can be absorbed and isotropically reemitted by atoms or molecules.

What is optical trapping technique?

Optical Trapping, also known as Optical Tweezers (OT), is a technique that uses light scattering to hold an object in place. When a laser beam is directed at a particle, cell, or other microscopic objects, the target’s shape can cause a scattering of the beam.

What is optical trap stiffness?

In the first category (also referred to as active stiffness calibration methods), optical trap stiffness is obtained by calibration of the laser-mediated optical force against a known externally applied force.

What were tweezers invented for?

Asiatic tweezers, consisting of two strips of metal brazed together, were commonly used in Mesopotamia and India from about 3000 BC, perhaps for purposes such as catching lice.

When was optical tweezers invented?

1986
Ashkin and colleagues in 1986 invented optical tweezers, which used a single laser that was focused by a lens to trap particles. Ashkin’s coworker, Steven Chu, who also worked at Bell Laboratories, used this technique to trap single atoms.

What is laser Trap?

A device that uses magnetic coils and lasers with tunable frequencies to suspend atoms or particles in a small region of space and to slow them down, reducing their temperature. Laser traps have been used to form Bose-Einstein condensates.

What is optical dipole trap?

Optical tweezers (originally called single-beam gradient force trap) are scientific instruments that use a highly focused laser beam to hold and move microscopic and sub-microscopic objects like atoms, nanoparticles and droplets, in a manner similar to tweezers.

What is magnetic tweezer?

Definition. Magnetic tweezers are devices used for studying mechanical properties of single molecules, such as force and torque. A single molecule is tethered to a surface at one end and attached to a magnetic bead at the other; the bead is manipulated via external magnets.

Why do we need to calibrate the trap in optical tweezer?

In order to accurately measure these molecular motor forces we need to have a well-calibrated instrument. Calibration for optical tweezers means knowing what the trap stiffness and trap force for a laser beam are at certain intensities.
