How does aerodynamic lift work?

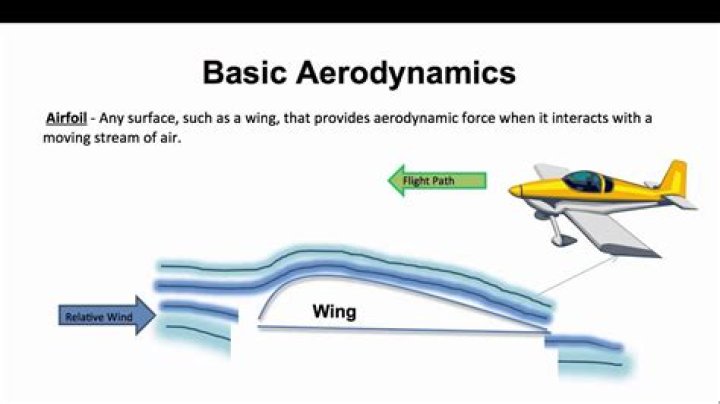

An airfoil generates lift by exerting a downward force on the air as it flows past. According to Newton’s third law, the air must exert an equal and opposite (upward) force on the airfoil, which is lift. The airflow changes direction as it passes the airfoil and follows a path that is curved downward.

How do wings generate lift?

“A wing lifts when the air pressure above it is lowered. It’s often said that this happens because the airflow moving over the top, curved surface has a longer distance to travel and needs to go faster to have the same transit time as the air travelling along the lower, flat surface.

How do you calculate coefficient of lift?

To calculate coefficient of lift:

Multiply fluid pressure by velocity squared and divide the product by 2.
Multiply the surface area with the preceding product.
Divide the lift force by the product.

What is the value of coefficient of lift?

Lift Coefficient: Incidence The value of C L max is a very important airfoil characteristic because it determines the minimum speed at which an airplane can fly. A typical value for the type of airfoil section mentioned is about 1.5. The corresponding value of α s is around 18 degrees.

What is aerodynamic principle?

Define Aerodynamic Principles Weight, lift, thrust, and drag are the four principles of aerodynamics. These physics of flight and aircraft structures forces cause an object to travel upwards and downwards, as well as faster and slower.

Where is aerodynamics used?

Aerodynamics comes into play in the study of flight and the science of building and operating an aircraft, which is called aeronautics. Aeronautical engineers use the fundamentals of aerodynamics to design aircraft that fly through the Earth’s atmosphere.

How does wing area affect lift?

The airfoil shape and wing size will both affect the amount of lift. The ratio of the wing span to the wing area also affects the amount of lift generated by a wing. The lift then depends on the velocity of the air and how the object is inclined to the flow. Air: Lift depends on the mass of the flow.

How do bird wings work?

Their shape uses the wind to make flying easier. From side on, you can see that a bird’s wing is flat underneath and curved on top. This means that the air passes faster above it than underneath it. The difference in air speed creates air pressure underneath the wing, which lifts it up.

What does lift coefficient depends on?

To summarize: Lift = Cl x dynamic pressure x area. Cl depends on geometry, angle of attack, and some constant. Dynamic pressure = 0.5 x density x velocity squared.

What affects coefficient of lift?

The values of the lift curve gradient and maximum lift coefficient are effected by the shape of the wing, its twist distribution, the type of aerofoil section used, the flap configuration and most importantly by the amount of down-wash flow induced on the wing by the trailing wing tip vorticies.

Does lift coefficient change with velocity?

We have seen that lift changes linearly with area, density, camber, and small angles, and as the square of the velocity. We have also seen that lift has a complex dependence on the airfoil geometry. Lift = constant x (geometric stuff) x (flight stuff) x area x angle of attack.

What influences coefficient of lift?

The maximum lift coefficient in two-dimensional flow depends on the aerofoil section geometry, the surface condition (rough or smooth) and the Reynolds and Mach numbers.
