How does a transistor NAND gate work?

How does a transistor NAND gate work?

In digital electronics, a NAND gate (NOT-AND) is a logic gate which produces an output which is false only if all its inputs are true; thus its output is complement to that of an AND gate. A LOW (0) output results only if all the inputs to the gate are HIGH (1); if any input is LOW (0), a HIGH (1) output results.

How many transistors are needed to make a NAND gate?

two transistors

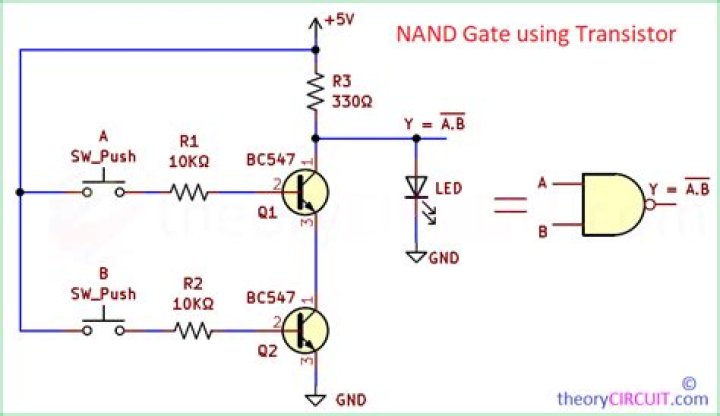

A two-input NAND gate produces a LOW output if both of its inputs are HIGH, and a HIGH output otherwise. It’s easy enough to create a NAND gate by using just two transistors.

How do you make a NAND gate?

Electronics Logic Gates: Universal NAND Gates

1. NOT: You can create a NOT gate from a NAND gate simply by tying the two inputs of the NAND gate together.
2. AND: You can create an AND gate by using two NAND gates.
3. OR: You need three NAND gates to create an OR gate.
4. NOR: It takes four NAND gates to create a NOR gate.

How are logic gates made from transistors?

The use of transistors for the construction of logic gates depends upon their utility as fast switches. When the base-emitter diode is turned on enough to be driven into saturation, the collector voltage with respect to the emitter may be near zero and can be used to construct gates for the TTL logic family.

How can use NAND gate as inverter?

You can easily turn a NAND gate into a single-input inverter (that is, a NOT gate) by connecting the single input to both inputs of the NAND gate. This connection causes the two inputs to always be the same: Either both are HIGH, or both are LOW.

What is NAND gate in physics?

The NAND gate is a combination of an AND gate and NOT gate. They are connected in cascade form. It is also called Negated And gate. The NAND gate provides the false or low output only when their outputs is high or true.

How many transistors are in a 2-input AND gate?

A 2-input NAND gate requires 4 transistors.

How many transistors are there in a 3 input gate?

Figure 4 3-input AND gates requires 8 Transistors Page 3 Therefore 4 3-input AND gates require 4*8=32 transistors. 3.2 (a) Show that the circuit in Figure P3. 2 is functionally equivalent to the circuit in Figure P3.

What is NAND gate draw the schematic symbol for NAND gate write its Boolean expression AND truth table?

The symbol of the NAND gate is represented as a combination of AND gate and NOT gate. The Boolean expression is given as Y=¯A. B. ….Symbol and truth table of NAND gate.

How do NAND gates connect to an gate AND AND gate?

To obtain an AND gate from NAND gates, we first feed the inputs A and B into the NAND gates. When, the output says Y is fed into another NAND gate with the two inputs joined together to obtain an output, say Z which is NOT (NAND Y). This is because joining the input of a NAND gate will give a NOT gate.

How transistors are made?

Transistors are made from silicon, a chemical element found in sand, which does not normally conduct electricity (it doesn’t allow electrons to flow through it easily). Silicon treated this way has fewer of those “free” electrons, so the electrons in nearby materials will tend to flow into it.

What is the use of a NAND logic gate?

NAND and NOR logic gates are known as universal gates because they can implement any boolean logic without needing any other gate. They can be used to design any logic gate too. Moreover, they are widely used in ICs because they are easier and economical to fabricate. How to design all gates using NAND and NOR logic gates?

What does the NAND gate do?

A NAND Gate is a logical gate which is the opposite of an AND logic gate. It is a combination of AND and NOT gates and is a commonly used logic gate. It is considered as a “universal” gate in Boolean algebra as it is capable of producing all other logic gates.

What is NOR gate using NAND gate?

The NOR gate and NAND gate are universal gates. This means that you can create any logical Boolean expression using only NOR gates or only NAND gates. In practice, this is advantageous since NOR and NAND gates are economical and easier to fabricate than other logic gates.

What is the CMOS NAND gate?

NAND gates are basic logic gates, and as such they are recognised in TTL and CMOS ICs . Diagram of the NAND gates in a CMOS type 4011 integrated circuit. The standard, 4000 series, CMOS IC is the 4011, which includes four independent, two-input, NAND gates.
