How does a switch mode power supply work?

How does a switch mode power supply work?

A switch mode supply works by turning the mains electricity on and off very quickly to reduce the voltage. In this case the reduction in voltage depends upon the ratio of the on time and off time. Switching takes place very fast, at 10,000 times a second or quicker.

How do you make a simple switch mode power supply?

Starts here4:26Simple switching mode power supply – YouTubeYouTubeStart of suggested clipEnd of suggested clip57 second suggested clipQuantity I put DualShock 2 diodes Intel 220 package with the reserve voltage of 60 volts. And aMoreQuantity I put DualShock 2 diodes Intel 220 package with the reserve voltage of 60 volts. And a current of 10 ampere. Taken from the computer power supply. Next is a small inductor l1.

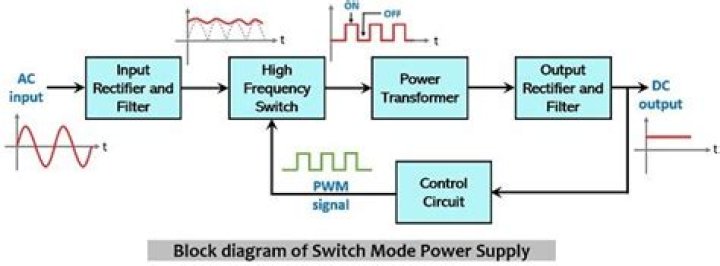

What is SMPS explain with diagram?

Switched Mode Block Diagram 1 shows a block diagram example of a typical SMPS with an AC Mains (line) input and a regulated DC output. The output rectification and filter are isolated from the High Frequency switching section by a high frequency transformer, and voltage control feedback is via an opto isolator.

What are the main 5 blocks of switched mode power supply?

The major components that constitute SMPS are as follows:

• Input rectifier and Filter (Diode rectifier and capacitor filter)
• High-frequency switch (Power transistor or MOSFET)
• Power transformer.
• Output rectifier and Filter (Diode rectifier and capacitor filter)
• Control circuit (comparator and pulse width modulator)

How do you wire a switch to a power supply?

Starts here8:33How to Wire a Cheap Power Supply – YouTubeYouTube

What is the difference between linear and switch mode power supply?

Linear power supplies deliver DC by passing the primary AC voltage through a transformer and then filtering it to remove the AC component. Switching power supplies feature higher efficiencies, lighter weight, longer hold up times, and the ability to handle wider input voltage ranges.

How do I make my switching power supply adjustable?

Starts here6:35How to make an adjustable power supply in 5 minutes – YouTubeYouTube

Why SMPS is called switch mode?

The full form of SMPS is Switched Mode Power Supply also known as Switching Mode Power Supply. An SMPS adjusts output voltage and current between different electrical configurations by switching the basics of typically lossless storage such as capacitors and inductors.

Which switch is used in SMPS?

Switch Mode Power Supply Summary. The modern switch mode power supply, or SMPS, uses solid-state switches to convert an unregulated DC input voltage to a regulated and smooth DC output voltage at different voltage levels.

What is switching regulator?

A switching regulator (DC-DC converter) is a regulator (stabilized power supply). In an electronic or other device, a switching regulator takes the role of converting the voltage from a battery or other power source to the voltages required by subsequent systems.

How do you wire a DC power supply?

To connect a DC power cable to a DC power source:

1. Cut the DC power cord ends no shorter than 150 cm (59.06 in).
2. If the power source requires ring tongues, use a crimping tool to install the ring tongues on the power cord wires.
3. Stack each same-colored pair of wires and then attach them to the same power source.

How do you make a 12v 10a power supply?

Starts here3:44How to make 12v and 10amp power supply – easy with circuit diagramYouTube
