How does a sound sensor work?

How does a sound sensor work?

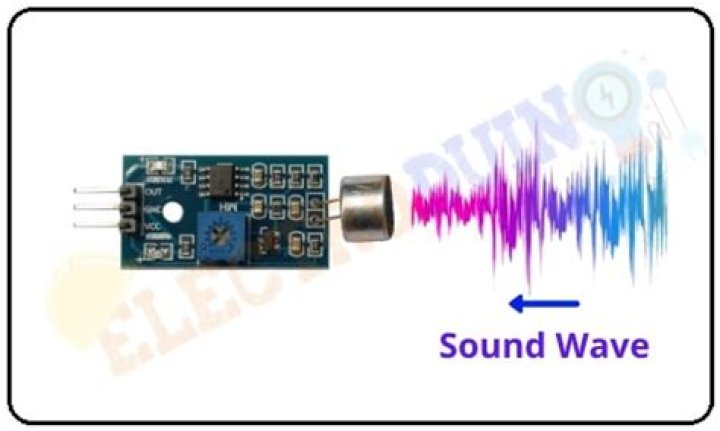

The sound sensor has a thin piece of material called a diaphragm that vibrates when hit by sound waves (similar to how your eardrum vibrates when hearing sound). The vibration of the diaphragm is converted by the sensor into an electrical signal that is sent to the LEGO brick, which knows that a sound has been heard.

What is a sound detector circuit?

This circuit called ‘Sound Detector’ is what detects vibrations of the sound waves and amplifies it to be heard distinctly by human ears. As per the design of the sound detector circuit using 741 IC, it works efficiently within the 6 meters limit around the vicinity where it is fixed.

How does a sound sensitive switch work?

Switch avoids false triggering by using 2-clap sound. Clapping sound is received by a microphone, the microphone changes the sound wave to electrical wave which is further amplified by op-amp. Circuit activates upon two-clap sound and stays activated until another sound triggers the circuit.

Is sound sensor analog or digital?

Some common examples of analog sensors are light sensors (LDRs), sound sensors, pressure sensors, and analog temperature sensors. Similarly, there are some commonly used digital sensors such as digital temperature sensors and digital pressure sensors.

What is sound detector app?

Sound and Noise Detector is a great, easy to use and an extremely useful application for your android phone. The application detects the sound level using the phone’s microphone. It also identifies the noise source based on sound level value.

What is sound sensor module?

A sound sensor is defined as a module that detects sound waves through its intensity and converting it to electrical signals.

What are the types of sound sensor?

There are different types of microphones which are known as sound sensors like dynamic, condenser, ribbon, and carbon, etc.

What is echo sound?

echo. [ ĕk′ō ] A repeated sound that is caused by the reflection of sound waves from a surface. The sound is heard more than once because of the time difference between the initial production of the sound waves and their return from the reflecting surface. A wave that carries a signal and is reflected.

What is sound operated switch?

The sound operated switch circuit comprises of Operational amplifier A741 used as a sensitive voltage comparator, Mic , Preset VR1 which provides reference voltage to the non-inverting terminal pin 3 and Mic and R2 is connected to inverting pin 2 of IC1 and few more components. …

How do you make a sound operated switch?

A basic sound operating switch can be constructed using an audio amplifier IC, a comparator, a 555 timer operating in monostable mode, a relay, and a load. Here the basic idea is to change the output of the timer with input from the microphone, in order to switch on the load.

What is an ultrasonic sound sensor alarm circuit?

This article discusses a simple ultrasonic sound sensor alarm circuit which may be appropriately set for detecting sound pressures well above the normal human listening capacity, that may range from 20 kHz and over.

How can the sensor circuit determine the door position?

Thereby the sensor circuit can determine the door position and control the alarm triggering. The above circuit is a simple switching circuit using a transistor. Here we are using a normally open reed switch. It is connected across the base-emitter of the NPN transistor.

What is the circuit diagram of security alarm?

Circuit Diagram of Security Alarm: Circuit Components: Resistor: Resistors are the passive device with two terminals. They are mainly used in the circuit to restrict the flow of current across any of the circuits.

What is a door opening alarm circuit?

A door opening alarm circuit is an indicator or a security alert device which activates while opening the device attached door. And the alarm remains ON as long as the door is kept open. For sensing the door position different types of methods can be used such as magnetic, light beam, mechanical, electrical etc.
