How does a rudder position indicator work?

How does a rudder position indicator work?

The Rudder Position Indicator has a pointer that swings a full 30° with each revolution on the steering wheel providing you with an easy-to-see reference point. The Indicator mounts directly to the hub of the boat’s steering wheel with a self-adhesive pad.

How do you adjust the rudder indicator?

Place Rudder on zero degree (Mid-ship). Repeatedly adjust the “Center” adjustment on the rear panel of the KRI-80 to ensure all needles are in center position. 3) Place Rudder to full scale. Adjust the “Range” to read correct Rudder angle indication.

What is the device that is used to indicate the current position of the rudder blade?

rudder angle indicator
A rudder angle indicator is a device used to indicate the present position of the rudder blade, usually fitted near the Ship’s wheel on the bridge and in the engine control room.

What is synchro in steering gear?

Designed by Cub Cadet engineers in 2009, Synchro-Steer is intended to lend the most control possible to rider mowers. The system allows for a zero-turn radius, meaning the entire mower pivots on a single point along the axle of the rear wheels.

What is the purpose of pintle in rudder?

The pintle and the nut are to be efficiently locked against rotation. The semi-spade rudder has smaller movable area than the comparable spade rudder resulting in lower maximum lift generated at high steering angles.

How does AIS work Automatic Identification System?

AIS works by taking your position and movements via the vessels’ GPS system or an internal sensor built into an AIS unit. Shore based stations also have equipment that receive AIS transmitted information and display it on an electronic chart showing ‘traffic’ within the waters near them.

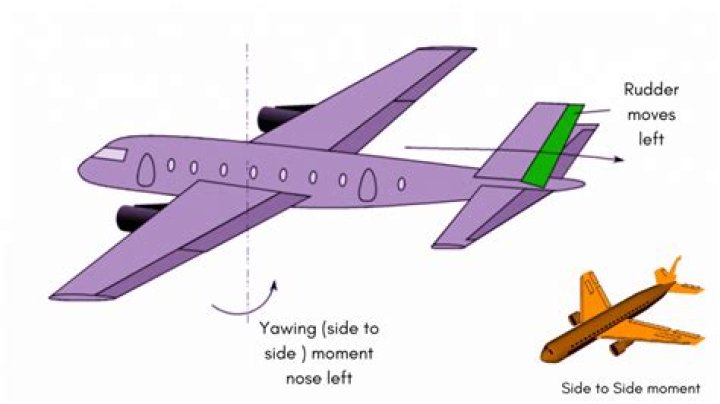

What do rudders do on an aircraft?

The rudder is a primary flight control surface which controls rotation about the vertical axis of an aircraft.

What force makes an airplane turn?

The horizontal component of lift is the force that pulls the aircraft from a straight flight path to make it turn. Centrifugal force is the “equal and opposite reaction” of the aircraft to the change in direction and acts equal and opposite to the horizontal component of lift.

What is electrical zero position of synchro transmitter?

The electrical zero position is used as reference for specifying the angular position of the rotor. The input to the synchro transmitter is the angular position of its rotor shaft and the output is a set of three stator coil-to-coil voltages.By measuring and identifying the set of voltages at the stator terminals.

How do Telemotors work?

Telemotor control is a hydraulic control system employing a transmitter, a receiver, pipes and a charging unit. The pumped fluid passes through piping to the receiver and forces the telemotor cylinder unit to move. The suction of fluid from the opposite cylinder enables this movement to take place.

How do I check my rudder pintle clearance?

Clearance in the neck bearing can be measured after the rudder is overhauled. Unless other wise the measurement is carried out using a feeler gauge. The standard clearance is 4.0 mm, If the clearance exceeds 5.0mm, the bush should be replaced. Actually the wear down of the neck bearing bush is smaller than the pintle.
