How does a rotary torque sensor work?

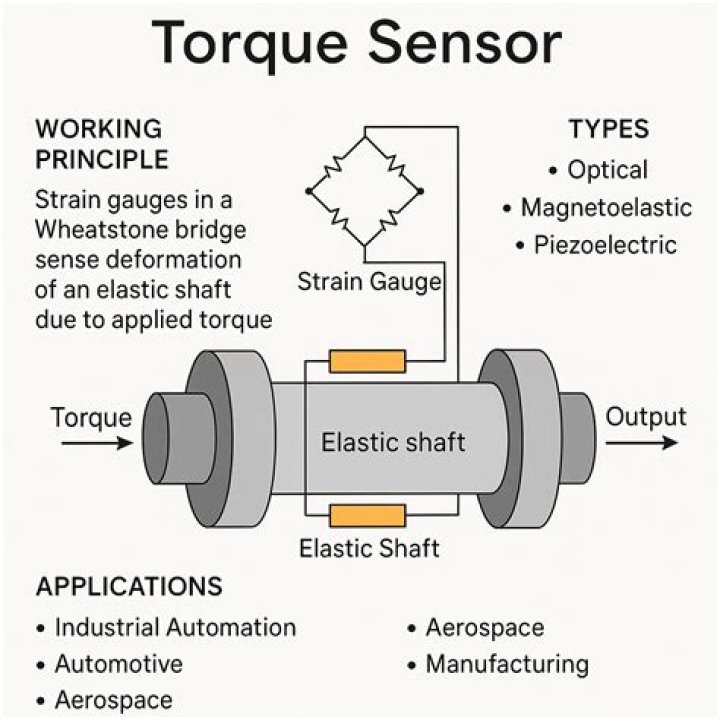

Rotary torque sensors measure torque by being coupled between an object and what it is imparting torque to. Inside the torque sensor, a shaft covered with strain gauges rotates. These strain gauges measure the torque transmitted through the shaft.

What is torque transducer?

Torque transducers convert torsion (Surface shearing stress) corresponding to a torque of the shaft to an electric quantity (Voltage), and then output signals through slip ring, brush, rotary transformer and photo transmittance.

What is a reaction torque sensor?

By definition, reaction torque sensor is a type of transducer, specifically a torque transducer that converts a torque measurement (reaction, dynamic or rotary) into another physical variable, in this case, into an electrical signal that can be measured, converted and standardized.

Why do we use torque sensor?

Rotary torque sensors are used for strain measurement, testing of clutch and gearboxes, and dynamic torque within the engine. Additionally, powertrain, brake, and suspension systems are tested using torque sensors, which are also used to measure horsepower in the interest of improving fuel efficiency.

What is a torque sensor on an ebike?

A torque sensor measures how hard the rider is pedaling to determine how much electric power to push to the bike. The harder you pedal, the more power it gives to the motor. If you pedal lighter, less power goes to the motor.

What is the use of torque sensor?

Which sensor is a type of inline torque sensor?

Which sensor is a type of inline torque sensor? Explanation: M425 sensor is a type of inline torque sensor.

What kind of sensors you can use to measure torque?

Torsions Sensors are also commonly known as Torque Transducer, Torque Cell, Torque Tester, Torque gauge or Moment Sensor. There are two main types of Torque Sensors: Reaction Torque Sensors or Rotational Torque Sensors.

What is torque and How Is It Measured?

Torque is measured in pounds-feet, meaning a force in pounds acting on the end of a lever measured in feet. For example, if that lug wrench is 2 feet (0.6 m) long, and you put 100 pounds (45.4 kg) of force on it, you are putting 200 pounds-feet (27.65 kg/m) of torque onto the bolt.

What does the power torque speed sensor do?

A torque sensor measures how hard the rider is pedaling to determine how much electric power to push to the bike.

Where are torque sensors used?

Is torque sensor better than cadence sensor?

With a torque sensor in use, the electric bike’s motor will increase its output relative to the amount of pedal force the rider is applying. A torque-based PAS may also engage relatively more quickly than a cadence-based PAS. And on some models, using only a torque-based PAS may increase range.

What is a torque sensor?

Torque Sensors | Torque Transducers | FUTEK Torque Sensor is defined as a transducer for measuring torque and converts it into an electrical output signal (aka Torque Transducers or Torque Cell). There are two main types of torque sensors: Reaction Torque Sensors and Rotary Torque Sensors.

How do you calculate hp to torque ratio?

Power (HP) = Torque (lb.in) x Speed (RPM) / 63,025. Torque (N.m) = 9.5488 x Power (kW) / Speed (RPM)

What is an ettorque sensor?

Torque Sensor is defined as a transducer for measuring torque and converts it into an electrical output signal (aka Torque Transducers or Torque Cell). There are two main types of torque sensors: Reaction Torque Sensors and Rotary Torque Sensors. FUTEK offices will be closed on Monday, September 6th, in observance of Labor Day.

Why is there no maximum torque at low rpm?

For internal combustion engine, maximum torque is not produced at exactly the same engine speed as maximum power obtained. On vehicles that used to pull heavy loads such as truck, the maximum engine power is at a low RPM so that maximum torque is also at low rpm.
