How does a HEUI injector work

Instead of a conventional injection pump, HEUI systems use a high-pressure oil pump. … The injection pressure regulator (controlled by the PCM) is responsible for creating injection pressures in a range of 450 to 3,000 psi on 7.3L engines, and 450 to 3,600 psi on 6.0L Power Strokes.

How are heui injectors actuated?

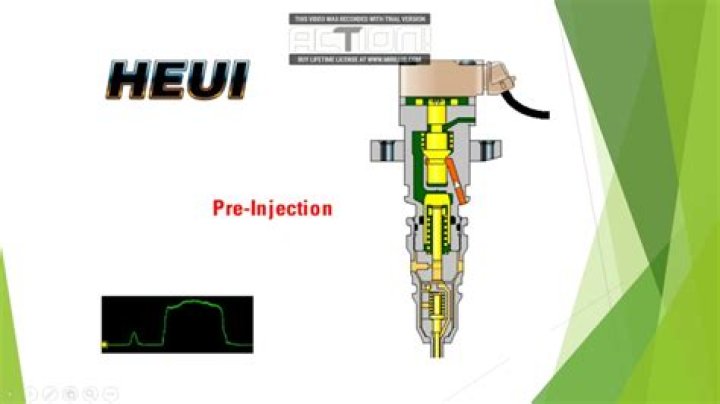

A typical injection event of an HEUI injector occurs as follows: 1) The electro-magnet solenoid at the top of the injector is activated by the injector drive module (IDM) after an injection event is commanded by the powertrain control module (PCM).

What engines use heui injectors?

HEUI applications included the 7.3L and 6.0L Powerstroke used between 1993.5 and 2007 by Ford. International also used the HEUI system for multiple engines including the DT-466, DT 570, T-444E, DT-466–570, Max Force 5, 7, 9, 10, Max Force DT and VT365 engines.

What does heui injector mean?

It’s called HEUI and it stands for hydraulically activated electronically controlled unit injector. An interesting yet complicated injection system that functions by using pressurized engine oil to fire its fuel injectors, HEUI is the perpetual underdog in diesel performance.

How do Cummins injectors work?

How do Cummins injectors work? Cummins injectors used in the Dodge Cummins 5.9L are high-pressure common rail injectors built by Bosch. They use a computer to trigger a solenoid and can inject multiple bursts of fuel into the cylinder all on a single stroke.

What type of injector nozzle is used in a heui?

Spring-biased nozzles are common in mechanically actuated and electronically actuated fuel injection systems. Some examples include pump-line-nozzle systems, many unit pump and unit injector systems such as Delphi’s E1, Cummins CELECT and Caterpillar’s HEUI-A and MEUI-A.

How does a heui system work?

As opposed to the earlier single-shot injector design, HEUI systems use computer-controlled hydraulic pressure to supply the injector with high-pressure oil. This building pressure would cause the injector to fire, releasing the fuel.

Is the 6.7 Powerstroke heui?

2 (6.7L) No HEUI here, just diesel fuel. Modern day, common-rail technology is employed on the 6.7L Power Stroke and at the heart of the system is a CP4. 2 high-pressure fuel pump from Bosch.

How many fuel chambers are in heui?

The HEUI uses engine lubrication oil that is pressurized from870 psi (6 Mpa) to 3500 psi (24 Mpa) to pump fuel from the injector. The HEUI operates in the same way as a hydraulic cylinder to multiply the force of the high- pressure oil,there are four chambers.

Who invented the HEUI injector?

Detroit Diesel Corporation’s electronically-controlled unit injector systems developed in the 1980s in cooperation with GM’s Rochester Products Division. Caterpillar’s hydraulically-actuated electronically-controlled unit injector system (HEUI). Cummins’ HPI injection system developed in cooperation with Scania.

Article first time published on

How do common rail injectors work?

Abstract: In the common rail system, fuel is distributed to the injectors from a high pressure accumulator, called the rail. The rail is fed by a high pressure fuel pump. The pressure in the rail, as well as the start and end of the signal that activates the injector for each cylinder are electronically controlled.

How does a diesel injector nozzle work?

The fuel injection system lies at the very heart of the diesel engine. By pressurising and injecting the fuel, the system forces it into air that has been compressed to high pressure in the combustion chamber. … high-pressure pipe – sends fuel to the injection nozzle. injection nozzle – injects the fuel into the cylinder.

How do diesel injectors fail?

Why do fuel injectors go bad? … Fuel injectors will fail when debris (water, dirt particles, etc.) or rust find their way into the system and, after time, plug up the nozzle, the armature, or the nozzle needle gets stuck.

What are the symptoms of bad diesel injectors?

• Trouble starting the vehicle or uneven idling. The engine cranks but doesn’t start unless you crank it for a long time. …
• Misfire. …
• Smell of fuel. …
• Dirty emissions. …
• Increased fuel consumption and poor miles per gallon.

Why do 6.0 injectors fail?

Another common cause of injector failure in the 6.0L is fuel interruption and/or air in the fuel system, where the fuel filters or fuel lines get clogged so the injectors can’t fill up with fuel between cycles. … In the end, injector failure is the result.

How are heui supplied hydraulically by fuel charging pressure?

Fuel charging pressure to the H.E.U.I’s is at values between 30 psi (2 bar) and 60 psi (4 bar). Engine-lubricating oil is used as the hydraulic actuating medium for the H.E.U. I’s. The pressure is boosted to values of up to 4,000 psi (276 bar) by a swash plate-type hydraulic pump.

What force creates injection pressure values in a HEUI injector?

The electric control in the HEUI system is only used in the activation of the solenoid valve that opens and closes the path of the high-pressure hydraulic oil that pushes the plunger. Thus, the force that creates pressure to the HEUI Injector is a hydraulic form of force.

What happens in the HEUI fuel pump chamber when the plunger Prime recess registers with the pump chamber spill port?

what controls the linear position of the injection pressure regulator in a heui fuel system. … what happens in the heui fuel pump chamber when the plunger PRIME recess registers with the pump chamber spill port? pressure collapse. when a HEUI control solenoid is de-energized what causes the fuel pump plunger to retraact?

How does a diesel inline fuel pump work?

An Injection Pump is the device that pumps fuel into the cylinders of a diesel engine. … It rotates at half crankshaft speed in a conventional four-stroke diesel engine. Its timing is such that the fuel is injected only very slightly before top dead centre of that cylinder’s compression stroke.

How is fuel injected into an engine?

Fuel injectors are located in the intake manifold and spray fuel through a tiny nozzle. The fuel injector uses a special nozzle to spray the fuel as mist, instead of a strong jet stream. … When the throttle valve opens, your fuel injector sprays fuel to mix with the air and then enters the engine’s combustion cylinders.

How do 6.0 Powerstroke injectors work?

The 6.0 Powerstroke engine, like the 7.3 its predecessor, uses Hydraulic Electronic Unit Diesel Injectors (HEUI), which receive energy to open from engine lube oil that’s pressurized by a gear-driven high-pressure pump.

What powerstroke to avoid?

The 2003-2007 Ford Super Duty 6.0L may be the worst diesel truck of all time. The 6.0L Powerstroke is infamous. The engine is so bad that Ford and Powerstroke parent company Navistar were engaged in a serious legal battle.

What is the life expectancy of a 6.7 Powerstroke?

In fact, dynamometer testing has revealed a statistically-proven lifespan of 500,000 miles or more; that’s the estimated service span before 10 percent of engines might need significant work requiring the removal of the cylinder heads or oil pan.

Should I delete 6.7 Powerstroke?

Yes, it does. An EGR delete can be beneficial in many ways. However, one of the major ways it is great for your vehicle is that it improves the fuel economy, increases horsepower, and gives you better mileage. These are all benefits that arise from getting optimized engine performance.

How do oil injectors work?

The typical injection system is simple in its operation. The oil (usually a little over a quart for most bikes) is poured into the oil tank where it is fed to the oil pump. … When the throttle is opened, the oil pump then feeds oil to both the crankcase and intake manifold.

How does a distributor injection pump work?

In distributor-type fuel-injection pumps system (Fig. 10.25) two or more plungers serve all the cylinders of the engine, and the fuel is injected to each cylinder in turn by a distributor. Two main types of pump in use are the rotary and axial plunger distributor pumps.

How many fuel injectors does a 7.3 diesel have?

There are eight fuel injectors on the 7.3-liter diesel engine; one corresponding to each cylinder. Placed under the fuel rails, the fuel injectors have a solenoid which opens a valve when engaged to allow pressurized fuel to spray into the combustion chamber.

Why do common rail injectors fail?

Water contamination: Another common cause of Common Rail injector failure is contamination from excess water in the fuel. If not stored or handled correctly, water can enter the fuel and will react with the chemicals in it to corrode metal surfaces and reduce lubrication between the moving parts.

How are the injectors activated in a modern common rail fuel injection system?

How are the injectors activated in a modern common rail fuel injection system? Explanation: The fuel injectors present in the modern common rail fuel system are activated by the solenoid valve. Solenoid valves and the fuel pump are electronically controlled.

What is the difference between common rail and direct injection?

Simply, common rail injection sprays fuel into the port before the intake valve. Direct injection sprays fuel after the intake valve, directly into the combustion chamber. Direct injection relies on much higher fuel pressure besides. This pertains to gasoline engines.

What is nozzle in diesel engine?

The nozzles on a diesel engine are responsible for taking the liquid fuel and atomizing it (breaking into small particles) so that it can burn. They need to deliver the proper amount of fuel to each cylinder for the load and horsepower demand.
