How do you tram the head on a milling machine?

How do you tram the head on a milling machine?

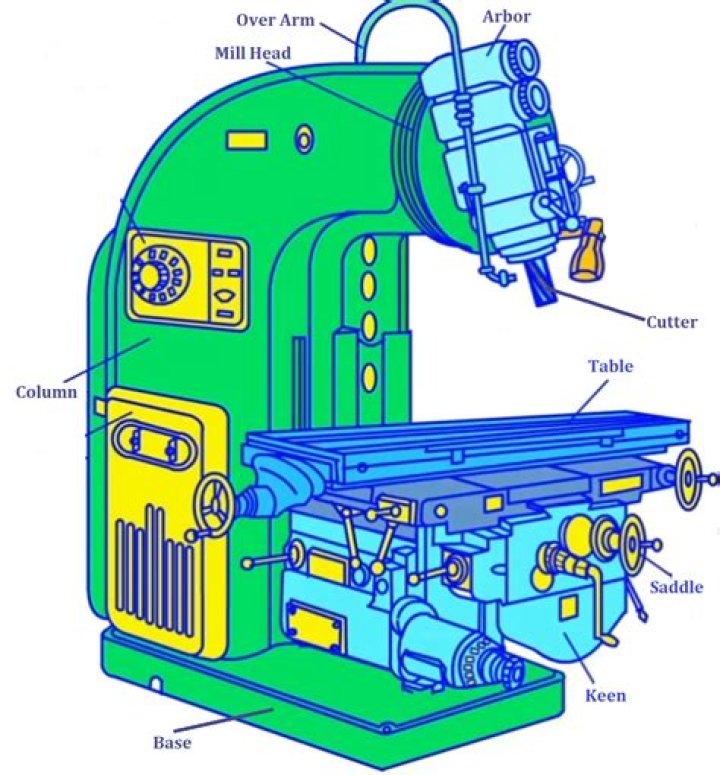

Tramming the Mill Head

1. Remove the vice from the milling table.
2. Attach a dial indicator to the spindle and offset the dial six inches from the spindle’s axis.
3. Raise the mill table so that when it contacts the indicator, the indicator reads between 0.005 inches to 0.010 inches.

What does it mean to tram a mill?

Tram is the squareness of your mill head to the table and Tramming is the act of adjusting the mill head to be square. There is tram parallel to the x-axis, and tram parallel to the y-axis (sometimes called “nod”). Depending on your machine, you may have a swivel head that is designed to cut at angles.

Are Bridgeport mills still made?

The Bridgeport knee mill is still made in the U.S.A. — by Hardinge Inc. Bridgeportarea-team members stand with the first machine to roll off the line at Hardinge. But enter Hardinge Inc., which mobilized to bring the entire manufacturing line into its Elmira, N.Y., facility.

What does Tramming mean?

a fine adjustment that ensures correct function or alignment. verbWord forms: trams, tramming or trammed. 2. ( transitive) to adjust (a mechanism) to a fine degree of accuracy.

Are Hardinge lathes still made?

Hardinge will now manufacture the Bridgeport and TALENT Series’ in the Company’s Elmira, New York facility which has been a crucial production site since 1931. The Elmira, NY plant is also home to the production of Hardinge workholding products, Super-Precision CNC Lathes and the Bridgeport Knee Mills.

What is tramming in milling machine?

Tramming a Milling Machine: Tools, Indicators, & Tips. Tram is the squareness of your mill head to the table and Tramming is the act of adjusting the mill head to be square. There is tram parallel to the x-axis, and tram parallel to the y-axis (sometimes called “nod”).

What is the difference between a squaretram and a tramming mill?

Tram is the squareness of your mill head to the table and Tramming is the act of adjusting the mill head to be square. There is tram parallel to the x-axis, and tram parallel to the y-axis (sometimes called “nod”). Depending on your machine, you may have a swivel head that is designed to cut at angles.

What is the difference between the terms “tram” and “tramming”?

Tram is the squareness of your mill head to the table and Tramming is the act of adjusting the mill head to be square. There is tram parallel to the x-axis, and tram parallel to the y-axis (sometimes called “nod”).
