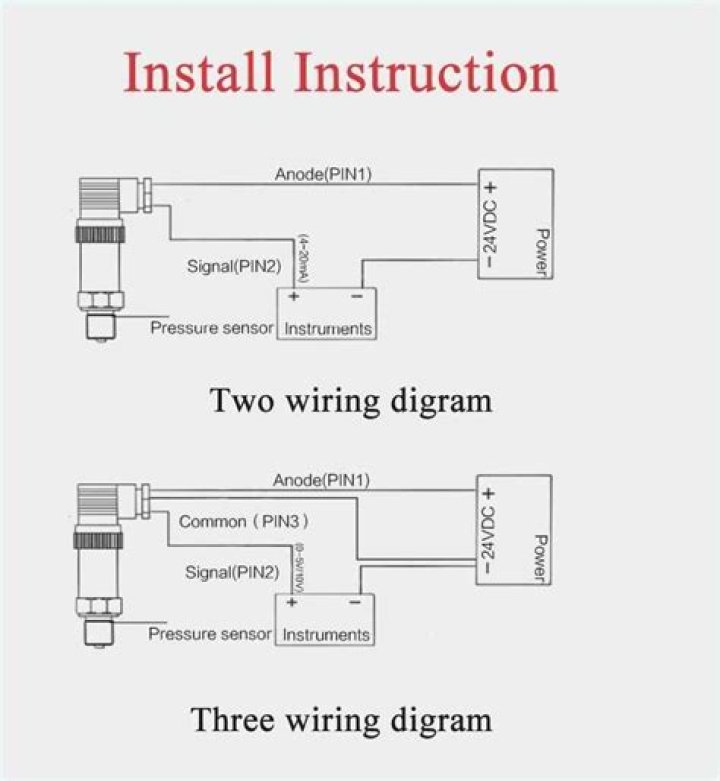

2-Wire Current Pressure Transducer

1. Connect the +ve terminal of the transducer to the +ve terminal of the power supply.
2. Connect the -ve terminal of the transducer to the +ve lead on the multimeter.
3. Connect –ve lead of the multimeter to the –ve terminal on the power supply.

How does a 2 wire pressure sensor work?

2 wire sensor is basically a loop-powered device without requiring a separate supply voltage (the source voltage is supplied to the destination device) whereas the 3 wire sensor is a self-powered device meaning, you supply source voltage to the sensor and it can drive a 4-20 ma input device directly without the …

What causes a pressure transducer to fail?

Pressure sensor typically “die” in the field because of mechanical damage, electrical overload (like lightning or misconnection during inspections/repair work) or, most commonly, damage by over-pressure, pressure spikes or ingress of moisture/chemicals into the product.

What is the difference between 2-wire and 3 wire transmitter?

2-wired RTDs are cheaper than 3-wired ones. Transmitters are either 2-wire or 4-wire. 2-wire transmitter relies on loop power from the receiving device, usually 24 VDC, to operate the transmitter interface, tranduce, characterize, and send the signal back to the receiving device.

What is the difference between 2-wire 3 wire and 4-wire?

2-wire RTD’s are mostly used with short lead wires or where close accuracy is not required. third wire provides a method for removing the average lead wire resistance from the sensor measurement. The 4-wire circuit is a true 4-wire bridge, which works by using wires 1 & 4 to power the circuit and wires 2 & 3 to read.

How does a 3 wire pressure transducer work?

A three-wire sensor has 3 wires present. Two power wires and one load wire. The power wires will connect to a power supply and the remaining wire to some type of load. When a target, the object that a sensor is detecting, comes within sensing range of the sensor, the sensor output turns on and current flows.

How do you clean a pressure transducer?

The best method for cleaning the physiological pressure transducer is to rinse with lukewarm water after use and dry with a soft cloth. DO NOT use cleaning agents containing iodide. Always rinse the transducer in water after the use of cleaning agents. Make sure the transducer is clean and dry before storing.
