How do you solve box plot problems?

How do you solve box plot problems?

How To Make A Box Plot From A Set Of Data?

1. Order the data from least to greatest.
2. Find the median or middle value that splits the set of data into two equal groups.
3. Find the median for the lower half of the data set.
4. Find the median for the upper half of the data set.

How do you do a box plot in math?

Start by plotting points over the number line at the lower and upper extremes, the median, and the lower and upper quartiles. Next, construct two vertical lines through the upper and lower quartiles, and then constructing a rectangular box that encloses the median value point.

What is a box plot in 6th grade math?

Box Plot Background : Box plots, also known as Box and Whisker plots, are one way to show the distribution, or spread, of a set of data. The “box” shows us the median and the interquartile range; it represents the middle half of the data. The mid-‐line of the box is the median, also know as the middle quartile (Q2).

How do you find the spread of a box plot?

Additionally, boxplots display two common measures of the variability or spread in a data set.

1. Range. If you are interested in the spread of all the data, it is represented on a boxplot by the horizontal distance between the smallest value and the largest value, including any outliers.
2. Interquartile range (IQR).

How do you find Q1 and Q3?

The formula for quartiles is given by:

1. Lower Quartile (Q1) = (N+1) * 1 / 4.
2. Middle Quartile (Q2) = (N+1) * 2 / 4.
3. Upper Quartile (Q3 )= (N+1) * 3 / 4.
4. Interquartile Range = Q3 – Q1.

How do you explain a box plot?

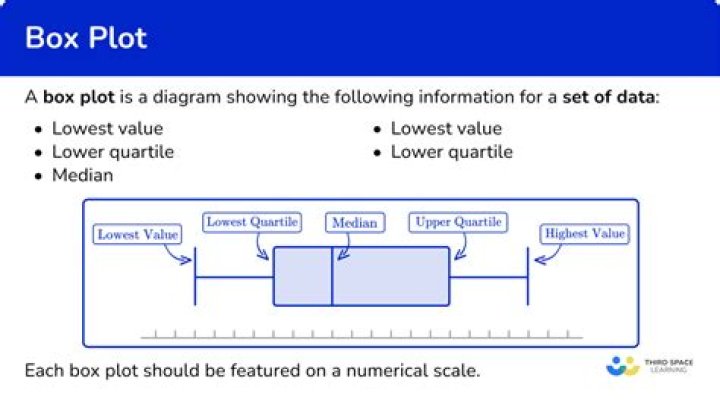

A box and whisker plot—also called a box plot—displays the five-number summary of a set of data. The five-number summary is the minimum, first quartile, median, third quartile, and maximum. In a box plot, we draw a box from the first quartile to the third quartile. A vertical line goes through the box at the median.

What grade are box plots taught?

In the USA, students learn about box plots as young as about age 12. The National Council of Teachers of Mathematics (NCTM), for example, includes box plots among the list of displays with which students in grades 6-8 should become familiar (NCTM, 2000).

How do you compare data in a box plot?

Guidelines for comparing boxplots

1. Compare the respective medians, to compare location.
2. Compare the interquartile ranges (that is, the box lengths), to compare dispersion.
3. Look at the overall spread as shown by the adjacent values.
4. Look for signs of skewness.
5. Look for potential outliers.

What does a box plot tell you?

A boxplot is a standardized way of displaying the distribution of data based on a five number summary (“minimum”, first quartile (Q1), median, third quartile (Q3), and “maximum”). It can also tell you if your data is symmetrical, how tightly your data is grouped, and if and how your data is skewed.
