How do you implement a FIR filter?

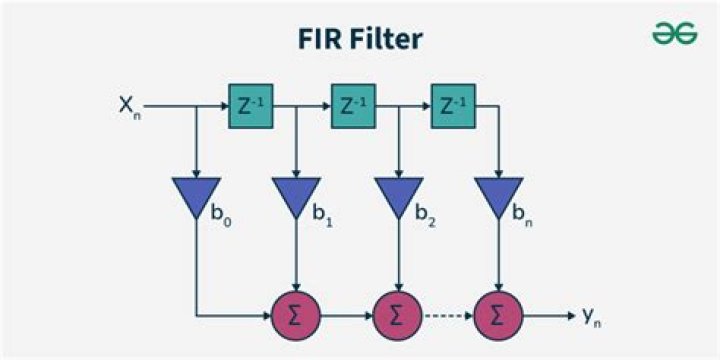

An FIR filter can be easily implemented using just three digital hardware elements, a unit delay (a latch), a multiplier, and an adder. The unit delay simply updates its output once per sample period, using the value of the input as its new output value.

Which method is used for implementing an FIR system?

Explanation: There are several structures for implementing an FIR system, beginning with the simplest structure, called the direct form. There are several other methods like cascade form realization, frequency sampling realization and lattice realization which are used for implementing and FIR system.

What is the number of filter coefficients?

What is the number of filter coefficients that specify the frequency response for h(n) symmetric? Explanation: We know that, for a symmetric h(n), the number of filter coefficients that specify the frequency response is (M+1)/2 when M is odd and M/2 when M is even.

Which function is used to design BPF using fir?

Basic Lowpass and Highpass CLS Filter Design The most basic of the CLS design functions, fircls1 , uses this technique to design lowpass and highpass FIR filters. As an example, consider designing a filter with order 61 impulse response and cutoff frequency of 0.3 (normalized).

How FIR filter is implemented in Verilog?

DSP for FPGA: Simple FIR Filter in Verilog

Create Design File for FIR Module.
Create a Simulation Source for its Testbench.
Run a Behavioral Simulation.

What are the design techniques of designing FIR filters?

When a particular frequency response is desired, several different design methods are common:

Window design method.
Frequency sampling method.
Least MSE (mean square error) method.
Parks–McClellan method (also known as the equiripple, optimal, or minimax method).

Which of the following technique is not used in design of FIR filter?

Explanation: When h(n)=-h(M-1-n) and M is even, we know that H(0)=0. Thus it is not used in the design of a low pass linear phase FIR filter. The anti-symmetric condition is not used in the design of low pass linear phase FIR filter.

Which of the following is the first method proposed for design of FIR filter?

Solution: Explanation: The design method based on the use of windows to truncate the impulse response h(n) and obtaining the desired spectral shaping, was the first method proposed for designing linear phase FIR filters.

What is FIR filter coefficients?

Finite-impulse-response (FIR) filters use the same data-flow topology, but with coefficients that have different values. In both cases, software performs a convolution between the coefficients and incoming data to indicate how well the coefficients overlap with the data in the time domain.

What is FIR filter?

In signal processing, a finite impulse response (FIR) filter is a filter whose impulse response (or response to any finite length input) is of finite duration, because it settles to zero in finite time. FIR filters can be discrete-time or continuous-time, and digital or analog.

What is FIR filter coefficient?

Which window is best for FIR filter design?

It is concluded that Black man window is the best window, because its side lobe is the better than another window. Key words—FIR filter, hamming window, Kaiser window, Gaussian window, and window.
