How do you delineate a watershed in GIS?
Watersheds can be delineated in Geographical Information Systems (GIS) by keeping track of flow direction and number of upstream points for each grid point in a DEM. Once the watershed is delineated it can then be used to crop out data from other layers (e.g. land cover, area, etc), that are useful in hydrology.
How do you delineate a watershed?
The delineation appears as a solid line around the watercourse….How to Delineate a Watershed
- Draw a circle at the outlet or downstream point of.
- Put small “X’s” at the high points along both sides of the watercourse, working your way upstream towards the headwaters of the watershed.
How does Arcgis calculate watershed?
Watersheds can be delineated from a DEM by computing the flow direction and using it in the Watershed tool. To determine the contributing area, a raster representing the direction of flow must first be created with the Flow Direction tool.
How do I make a watershed map in Arcgis?
How To: Create a watershed model using the Hydrology toolset
- Run the Fill tool.
- Run the Flow Direction tool.
- Run the Flow Accumulation tool.
- Run the Snap Pour Point tool to locate the pour points to cells of high accumulated flow.
- Run the Watershed tool.
Why is watershed delineation important?
After a watershed is delineated, useful determinations can be made that can aid in the land use planning process such as: Visualizing the effects that a future development may have on downstream areas, as well as the influence of additional or existing developments upstream.
What is catchment delineation?
Catchment delineation is one of essential steps for sewershed modeling studies. Advanced functions in GRID module of ArcInfo help modelers to automatically delineate watersheds.
How do you delineate a watershed from Toposheet?
Following steps are used for watershed delineation: Step 1: Take a topo- sheet and mark the location of the water body or tributary joining the main stream. Step 2: Study the contour lines (lines connecting points of equal elevation above mean sea level or GTS Benchmark) on the topo-sheet for the area.
What is the importance of watershed delineation?
What does delineate watershed mean?
Delineating watershed boundaries. All watershed delineation means is that you’re drawing lines on a map to identify a watershed’s boundaries. Contour lines are lines of equal elevation, so any point along a given contour line is the same elevation.
How do you delineate drainage areas?
Basic rules for the delineation of drainage areas are as follows:
- Utilize the USGS topographic mapping in the Resource Center in ABE 104.
- A stream or body of water should not be crossed.
- A basin divide will not fall in a drainage swale.
- All ridge lines should be followed.
- When in doubt, consult someone with more experience.
How to delineate a watershed?
Mark the outlet point in the topo map
What determines the boundaries of a watershed?

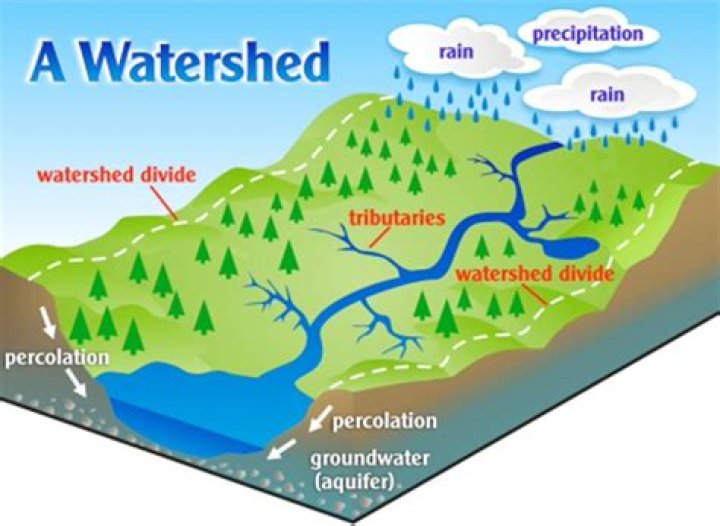

Watershed boundaries are defined by topographic divides and delineate areas where surface-water runoff drains into a common surface-water body, such as a lake or section of a stream. Watersheds may be identified at many different scales.
How are watershed delineated?
Watersheds are always physically delineated by the area upstream from a given outlet point. This generally means that for a stream network, the contributing area upstream to a ridge line. Ridgelines separate watersheds from each other.
What is watershed delineation?
Watershed Delineation: A common method of locating and delineating the boundaries of watersheds is to use topographic maps following the basic principle that water runs downhill. A topographic map represents the physical features of the land such as hills, valleys, basins, ridges, and channels.
