How do you calculate superheat r410a?

How do you calculate superheat r410a?

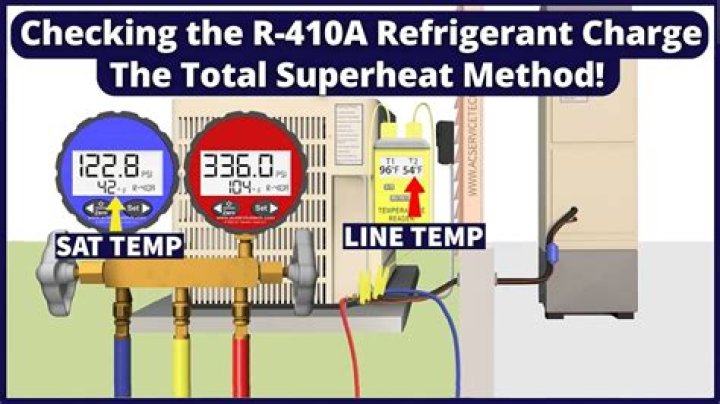

Measure the suction line temperature and suction pressure at the suction side service valve. Ensure the temperature probe is insulated from any external influences. Convert the gauge pressure to saturation temperature and subtract this temperature from the suction line temperature. This is the total superheat.

What should superheat be for 410A?

For most systems, 20F to 25F should be measured near the compressor and 10F at the evaporator.

How do you calculate superheat?

The total superheat calculation is as follows: Degrees compressor in temperature (50 degrees) minus saturation temperature (23 degrees) equals total superheat (27 degrees). In the above example, the total superheat was calculated to be 27 degrees.

How do you calculate 410A subcooling?

Subtract the lower temperature measured on the liquid line from the saturated temperature and you have subcooling!

1. 105°F Sat Temp – 93°F Actual Line Temp = 12°F of Subcooling.
2. R-410A split system air conditioner.

What is a good subcooling for 410A?

Most heating and cooling systems should operate at a superheat of 10F at the evaporator and between 20F to 25F at the compressor. if your HVAC system has a thermostatic expansion valve (TXV), the subcooling should be between 10F and 18F.

What should the high and low side pressures be for 410A?

A normally operating R-410A system with the same condensation temperature of 120 degrees and a 45 degree evaporator saturation temperature will have a high side pressure of 418 psig and a low side pressure of 130 psig.

What is a good superheat range?

Superheat for most systems should be approximately 10F measured at the evaporator; 20F to 25F near the compressor. If the suction pressure is 45 psi, (which converts to 22F) and the suction temp is 32F, the system still has 10F of superheat.

Do you add refrigerant to lower superheat?

Add refrigerant to lower the suction superheat. Recover refrigerant to increase the suction superheat. Note that you should never add refrigerant if the superheat is already 5F or less, even if the charging chart shows 0F. You don’t want to overcharge the system if your thermometer or gages are not perfectly accurate.

How do you calculate superheat discharge?

The discharge superheat is calculated the same way as any other superheat/ subcool on a system. By measuring the discharge superheat you can subtract the suction superheat and that then leaves you with a figure of how much superheat the compressor has given through compression and mechanical /electrical inefficiencies.

How do you calculate subcooling on 410A?

What is ideal superheat?

What should my superheat be?

Superheat for most systems should be approximately 10F measured at the evaporator; 20F to 25F near the compressor. If the suction pressure is 45 psi, (which converts to 22F) and the suction temp is 32F, the system still has 10F of superheat.

What does high superheat and high subcooling mean?

High subcooling means too much refrigerant is being held in the condenser. After the refrigerant condenses, it remains in the condenser too long and continues to lose temperature. High suction superheat means not enough refrigerant is being fed into the evaporator.

What is the pressure for 410A refrigerant?

According to Refrigeration Service Engineers Society, R-410A operates at a suction pressure of 118 psi and a discharge pressure of 400 psi. This refrigerant operates at pressures 50 to 70% higher than those of R-22 (typically operates with a suction pressure of about 68 psi and a discharge pressure of about 250 psi).

What is superheat and subcooling?

Superheat and Sub-cooling – In HVAC refrigeration is used for air conditioners and heat pumps to transfer heat in one direction or another. A good HVAC technician is well versed in refrigeration. Refrigeration is defined as moving heat from one place to another.
