How do you adjust the fuel mixture on a Mikuni carb?

How do you adjust the fuel mixture on a Mikuni carb?

Adjust the pilot jet, located below the air screw, using the adjustable wrench. The pilot jet regulates the amount of fuel entering the carburetor. Turning the pilot jet to the right lessens the amount of fuel entering the carburetor; turning it to the left increases the amount of fuel entering the carburetor.

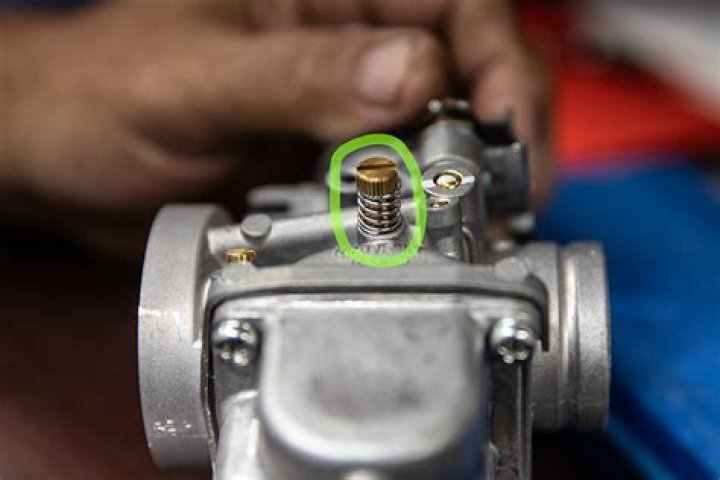

Where is the mixture screw on a Mikuni carb?

The pilot air screw and pilot jet. The air screw can be located either near the back side of the carburetor or near the front of the carburetor. If the screw is located near the back, it regulates how much air enters the circuit. If the screw is turned in, it reduces the amount of air and richens the mixture.

How do you adjust a running rich carburetor?

Regardless of whether or not the engine is running too rich or too lean, bring it down to a very lean mixture by turning both screws a quarter-turn at a time, counter-clockwise, then slowly bringing them back up to an equal and smooth mixture.

How do I know if my carburetor is running rich or lean?

Q: How Do You Tell if a Carburetor Is Rich or Lean? A: One way to tell for sure is by “reading” the spark plugs. If the plug tip is white, the mixture is lean. If it’s brown or black, it’s rich.

How do I know if my carburetor is too rich or lean?

Is backfiring lean or rich?

Lean Air/Fuel Mixture Not only can a rich air/fuel ratio cause a backfire, a mixture that doesn’t have enough gasoline can cause a backfire, too. When a lean mixture combusts, it burns more slowly, meaning there will still be some air and fuel that isn’t used up when the exhaust valves open — leading to a backfire.

Can you put a Mikuni vm24 CARB on a TTR 125?

Swapping a Mikuni VM24 carb onto your TTR 125 is not that difficult if you have a little bit of time and some basic tools. Not too often will you see me devote an entire article on a “Make My Dirt Bike Go Faster!” article, let alone on a bike that is meant for beginners.

How long does it take to change a vm24 carburetor?

Total time should be 1-2 hours if you have everything ready, and even less if you’ve done it before. First thing to do is take off the throttle cap from your new VM24 carb, as well as the one from your stock TTR125 carb and remove the cable/adjustment screw so all you have left are the bare caps.

How do you adjust the needle on a Mikuni carb?

On most Mikuni carbs, the jet needle is adjustable.There are usually four or five positions where the needle can either be raised or lowered using by moving the E-clip (more on that a little later). When the needle is lower in the jet, it allows less fuel and a leaner mixture.

What are the different types of Mikuni carbohydrates?

There are basically three different types of Mikuni carbs you’ll see on motorcycles. First, there are the OEM (original equipment manufacturer) carbs. Mikuni engineers work with motorcycle manufacturers to adapt their carbs to a particular design to meet factory specifications.
