How do I make a table in LaTeX landscape?

How do I make a table in LaTeX landscape?

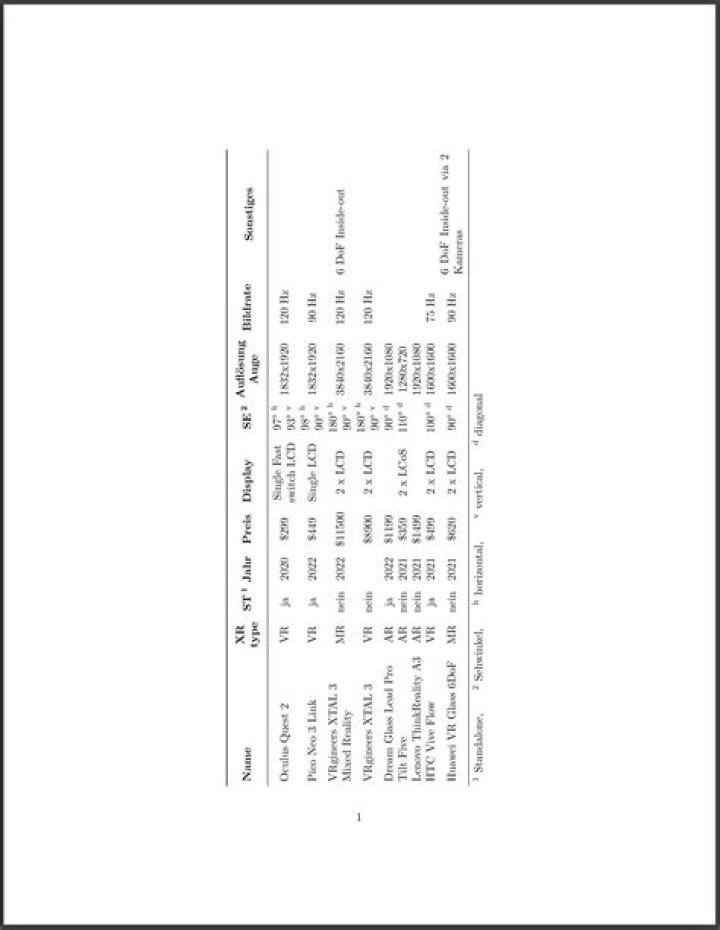

-3: To create a table in landscape mode, rotating package is included with sepackage{rotating} command. Then, the table is produced using \begin{sidewaystable}, and \end{sidewaystable}. The table given in Table 1.3 can be created in landscape mode as given below, and the screen capture of it is shown in Table 1.4.

How do I make a table landscape?

Method 1: Change the Page Orientation

1. Firstly, click “Page Layout” tab.
2. Then click the arrow button to open the “Page Setup” dialog box.
3. Ensure the “Margins” tab is on and choose “Landscape”.
4. Next choose “Selected text” for “Apply to”.
5. Lastly, click “OK”.

How do you rotate a table in LaTeX?

5 Answers. As Jake said you can use \rotatebox from the graphicx package to rotate a table. This is perfectly fine for uncomplicated tables.

How do you make a long table in LaTeX?

Multi-page tables using \longtable

1. \endfirsthead : Line(s) to appear as head of the table on the first page.
2. \endhead : Line(s) to appear at top of every page (except first)
3. \endfoot : Last line(s) to appear at the bottom of every page (except last)
4. \endlastfoot : Last line(s) to appear at the end of the table.

How do you scale a table in LaTeX?

You can resize it using \resizebox{}{} from the graphics package. The column width is \columnwidth and you can select ! for the height to make it scale along with the width.

How do I move a table to the left in LaTeX?

Easiest way to do achieve it insert an \hskip-4.0cm\begin{tabular} \end{figure} . The hskip-4.0cm will tell LaTeX to move the box left by the amount of 4.0cm.

What is landscape layout?

A landscape layout uses scaled dimensions to help determine where you should place all outdoor elements, from flowers, plants, and grass to furniture, hardscape areas, and water features.

How do I make a table landscape in Word?

Select the pages or paragraphs whose orientation you want to change. Click PAGE LAYOUT > Page Setup dialog box launcher. In the Page Setup box, under Orientation, click Portrait or Landscape. Click the Apply to box, and click Selected text.

How do you use tables in LaTeX?

The tabular environment is the default LaTeX method to create tables. You must specify a parameter to this environment; here we use {c c c} which tells LaTeX that there are three columns and the text inside each one of them must be centred.

How do you reference a table in LaTeX?

It is a Latex convention to start table references by “tab:”, which no only lets you use the same name for a figure (starting with fig:) and a table, but makes it easier to distinguish between figures and tables. Use the command \ref{tab:} to reference a table in the text.

How do you change the size of a table in LaTeX?

You can resize it using \resizebox{}{} from the graphics package. The column width is \columnwidth and you can select ! for the height to make it scale along with the width. Should the table include verbatim or similar material than \resizebox isn’t good enough.

How do you scale down a table in LaTeX?

4 Answers. You can resize it using \resizebox{}{} from the graphics package. The column width is \columnwidth and you can select ! for the height to make it scale along with the width.

What is the table and tabular environment in latex?

Summary 1 LaTeX offers the table and tabular environment for table creation 2 The table environment acts like a wrapper for the tabular similar to the figure environment 3 Alignment and vertical separators are passed as an argument to the tabular environment (e.g.

How to create a text table in latex?

Tables in LaTeX can be created through a combination of the table environment and the tabular environment. The table environment part contains the caption and defines the float for our table, i.e. where in our document the table should be positioned and whether we want it to be displayed centered.

How to take a page break from a tabular table?

One solution could be taken the whole tabular in a small environment. But there is a better way. An esay way is to change the orientation of the table, by using usepackage lscape, which allows to change the orientation of the page and therefor also the table. After \\begin {landscape} and after \\end {landscape} is an automatic page break.

How do I get a long table to span multiple pages?

To get a long table to span multiple pages (regular orientation), one can utilize the longtable environment; see this example. What if both solutions don’t work? That is, you have a wide and long table that needs to inserted in landscape mode and have the table span multiple pages?
