How do I know if my pilot jet is too lean?

If the bike surges or hunts, the pilot jet is probably too small (lean). Other indications that the pilot circuit is lean are popping or spitting through the carburetor when the throttle is opened and popping or backfiring through the exhaust when the throttle is shut.

Where is the air fuel mixture screw on a Mikuni carb?

The air screw can be located either near the back side of the carburetor or near the front of the carburetor. If the screw is located near the back, it regulates how much air enters the circuit. If the screw is turned in, it reduces the amount of air and richens the mixture.

How do you synchronize a motorcycle carburetor?

To vacuum sync your carburetors:

Bring the engine up to operating temperature.
At idle, adjust each carb until the vacuum readings are within about 2 cm Hg of one another.
Work in pairs, matching the 1 and 2 carbs together, and then the 3 and 4, and then the pairs together.

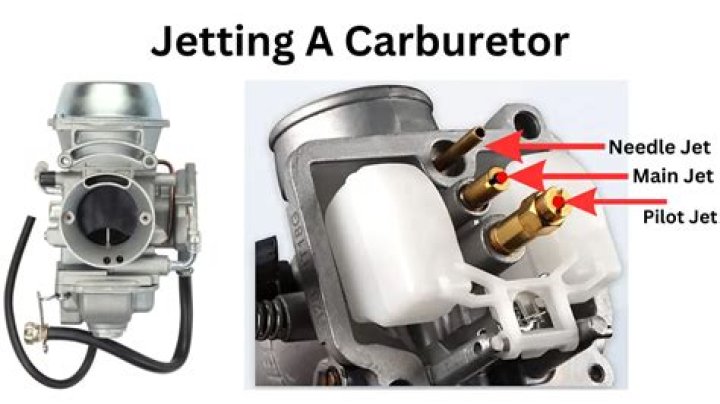

What does the pilot jet do in a Mikuni carburetor?

The pilot jet is the part which supplies most of the fuel at low throttle openings. It has a small hole in it which restricts fuel flow though it. Both the pilot air screw and pilot jet affects carburetion from idle to around 1/4 throttle.

Which way is choke on a Mikuni carburetor?

The pivot point on the lever can be set up a couple different ways, but the plunger that the lever activates is the only thing that matters. Just remember that if the plunger is UP, the choke is ON. If the plunger is DOWN, the choke is OFF.

How do you adjust a carburetor on a small engine?

The first step to adjusting a small engine carburetor is to locate the adjustment screws. Now turn both screws counter clockwise until they are about to fall out. The second step to adjusting a small engine carburetor is to start the engine. Warm the engine up.

How to adjust carburetor?

1. Locate the air filter and remove it. On most cars,you’ll need to remove the air filter to expose to carburetor and adjust it. Open the hood and

2. Find the adjustment screws on the front of the carburetor. There should be two screws on the front of the carburetor,which are used to adjust the

3. Start the engine and let it warm to normal operating temperature. Check the temperature gauge to know when it’s at the appropriate running temp,…

4. Adjust both screws equally and find the right mixture. Adjusting the carburetor is a lot like tuning a guitar or other stringed instrument. You

What are some common Mikuni carburetor models?

Mikuni VM12SC on Yamaha QT50 and PW50 This is a 12mm carburetor (12mm venturi diameter) with a 18mm clamp diameter. Mikuni H9-10 on Indian, R4-13 on Trac (Daelim) H9 is a 10mm carb with a 18mm clamp diameter. R4 is a 13mm carb with a 20mm clamp diameter. Mikuni VM10-24 on Angel (TYM) mopeds This carb is on Taiwan-made Angel and Speed Bird mopeds.

How do you adjust Briggs and Stratton carburetor?

Owners can adjust a Briggs and Stratton carburetor by adjusting the idle screw located underneath the air filter. Adjusting the carburetor can help the machinery run smoothly and reduce idling problems.
