How do I find cluster quorum settings

With the cluster selected, under Actions, select More Actions, and then select Configure Cluster Quorum Settings. The Configure Cluster Quorum Wizard appears. Select Next. On the Select Quorum Configuration Option page, select one of the three configuration options and complete the steps for that option.

How do you find the quorum of a cluster?

Start Cluster Administrator, then right-click the cluster’s name and select Properties. Select the Quorum tab, and you’ll see the current quorum disk in the “Quorum resource” drop-down list, which the Figure shows. If you want to change the quorum disk, select a new quorum resource from the list.

What is cluster quorum settings?

The quorum configuration in a failover cluster determines the number of failures that the cluster can sustain while still remaining online. If an additional failure occurs beyond this threshold, the cluster will stop running.

How do I verify cluster quorum configuration?

1. From the Start menu (the Start screen on Windows 2012 operating systems), click Administrative Tools. …
2. Right-click the cluster node and in the context menu, select More Actions > Configure Cluster Quorum Settings.

What is quorum in SQL cluster?

A cluster quorum disk is the storage medium on which the configuration database is stored for a cluster computing network. The cluster configuration database, also called the quorum, tells the cluster which physical server(s) should be active at any given time.

How do I enable dynamic quorum?

Dynamic quorum is enabled by default in a Windows Server 2012 cluster and can be changed if you select the Advanced quorum configuration and witness selection option. To check the current votes of a cluster, run the Get-ClusterNode Windows PowerShell cmdlet– the DynamicWeight property shows if it has a vote or not.

What is disk witness quorum?

Disk Witness – A small clustered disk which is in the Cluster Available Storage group. This disk is highly-available and can failover between nodes. It contains a copy of the cluster database.

How do I get rid of disk witness in quorum?

1. Open Failover Cluster Manager + connect to cluster.
2. Configure cluster quorum settings.
3. Select Node Majority.
4. Got to “Storage”, take Witness Disk offline.
5. Delete Disk.
6. Remove disk from o/s.

What happens if quorum disk fails?

If the quorum disk fails, the cluster service on ALL nodes in the cluster will stop since none of the nodes will be able to successfully arbitrate for the quorum resource.

How do I set always on high availability?

Right click on the TCP/IP entry and select Enable. While you are still in SQL Server Configuration Manager, right click on SQL Server Services to open the Properties dialog box. Navigate to the AlwaysOn High Availability tab, and select Enable AlwaysOn Availability Groups checkbox.

Article first time published on

How do you change a cluster quorum disk?

1. add to storage to your failover cluster so that is visible in available storage.
2. go to failover Cluster manager -> More Actions -> configure configure quorum settings.
3. Select quorum model and point to your new disk.

How do I move a cluster quorum drive?

In the actions pane go to More Options and select Configure Cluster Quorum Settings. Follow through the wizard and the only thing you need to change is on the Configure Storage Witness page. On this page, simply select the check next to the new storage disk.

How do I find cluster nodes in SQL Server?

Identify Nodes of SQL Server Failover Cluster using TSQL Query. You can identify the nodes of SQL Server Failover cluster either by using an inbuilt function or using a DMV. Below mentioned queries will return the same result.

How is quorum defined?

A quorum is the minimum number of members of a deliberative assembly (a body that uses parliamentary procedure, such as a legislature) necessary to conduct the business of that group. … In modern times a quorum might be defined as the minimum number of voters needed for a valid election.

What is dynamic quorum in SQL Server?

Dynamic Quorum is the ability of a Windows Server failover cluster to recalculate quorum when nodes fail or shut down sequentially. … When nodes shut down sequentially, Dynamic Quorum allows the cluster to continue running with less than a majority of active nodes.

What is quorum in Hyper V cluster?

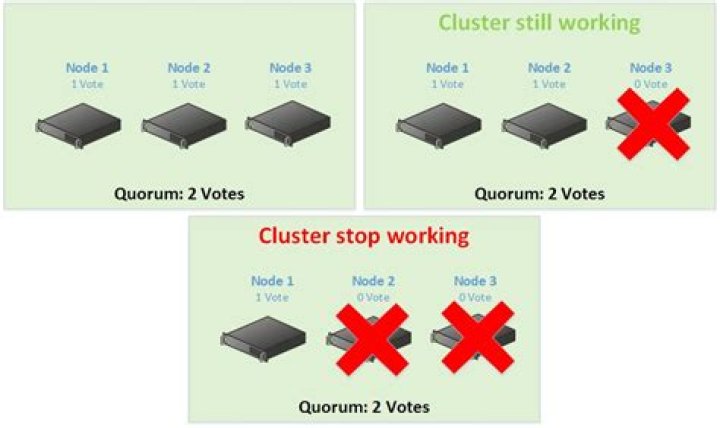

Quorum is in place to ensure there is only one owner of a particular resource at a time. Having quorum is based on a majority of voters in a Windows Failover Cluster. This is accomplished with a voting algorithm where more than half of the voters must be online and able to communicate with one another.

What is quorum in Redhat cluster?

2.1. A cluster has quorum when more than half of the cluster nodes are online. … For example, in a 6-node cluster, quorum is established when at least 4 cluster nodes are functioning. If the majority of nodes go offline or become unavailable, the cluster no longer has quorum Pacemaker stops clustered services.

What happens to a running cluster of the quorum disk fails in Windows Server 2012 cluster?

Changes in 2012 Every item in the cluster is considered to have a vote. If the quorum mode is witness-only, then there is only one vote, and if it is lost, then the entire cluster and all nodes in it will stop.

Which of the following is a Windows failover cluster quorum mode?

Which of the following is a Windows Failover Cluster quorum mode? Explanation: In Node majority, each node that is available and in communication can vote. The cluster functions only with a majority of the votes.

How do I move a cluster quorum to another node?

In a Windows failover cluster you can move roles from one node to another, as you’ve noticed there’s no option to move the quorum disk to another node. However, there is an option to move quorum disk to another node using the command line tool. Note: This will list the status for all available resource group.

What quorum model utilizes Microsoft Azure and is used in stretch clusters?

Cloud Witness is a Failover Cluster quorum witness that uses Microsoft Azure Blob Storage to provide a vote on cluster quorum.

Where is failover cluster manager located?

On the server computer, click Start > Administrative Tools > Failover Cluster Manager. The Failover Cluster Manager dialog box appears.

How do I restore a quorum disk?

1. Shut down the primary node.
2. Replace the cluster quorum shared disk with new disks.
3. Start the primary node. …
4. To restore the original disk signature for the shared disk, run one of the following utilities: …
5. Recreate and reformat the partitions on the non-quorum shared disk.

What is quorum disk size in cluster?

Most of the clusters I’ve seen used a quorum disk of 5 to 20 GB.

Can we configure always on without cluster?

Step 1: We need to enable SQL Always On feature on both standalone SQL instances. To do so, RDP to each server and Open SQL Server Configuration Manager. In this go to SQL Server instance properties and Enable Always On Availability Groups. … We can enable it in SQL Server 2017 or above without failover cluster.

What is quorum in always on?

Quorum is the minimum number of votes required for a majority in a Failover Cluster. Quorum determines how many node failures the cluster can sustain. Through the Private Network on port 3343, all cluster nodes communicate health status and resource monitoring information.

How do I configure file share witness?

1. In Microsoft Windows Server 2012, Right-click the Start Menu and then select Server Manager to launch the Server Manager dashboard.
2. Click the Server Manager icon to access the server manager.
3. Go to Files and Storage ServicesShares and then click Tasks.
4. Click New Share.

What is the difference between an active node and a passive node in a failover cluster?

One node is active running the instance of SQL Server while the other waits in a passive state for the other node to failover, in the event of a failover the second node takes over the running of the SQL instance.

How many replicas can I have in an AlwaysOn availability group?

A given instance can host only one availability replica per availability group. However, each instance can be used for many availability groups. A given instance can be either a stand-alone instance or a SQL Server failover cluster instance (FCI).

How do I add a database to a high availability group?

1. To launch the Add Database to Availability Group Wizard, select the Add Database command. …
2. To add one or more databases by specifying them in the Availability Group Properties dialog box, select the Properties command.

What is FCI in SQL Server?

An FCI is a single instance of SQL Server that’s installed across WSFC (or simply the cluster) nodes and, possibly, across multiple subnets. On the network, an FCI appears to be a single instance of SQL Server running on a single computer.
