How do I enable dialog box in AutoCAD?

How do I enable dialog box in AutoCAD?

To open the Options dialog box, type OP in the command line, or right-click in space (without anything selected), and choose Options from the right-click shortcut menu. The AutoCAD Options dialog box contains 10 tabs, and is organized into categories to aid you in finding a setting.

Where is the dialog box in AutoCAD?

To access the Find dialog box, in a standard file selection dialog box, click Tools menu Find.

How do you change the Save As in AutoCAD?

Solution:

1. Type OPTIONS in the AutoCAD command line.
2. In the Options dialog box, go to the Open and Save tab.
3. In the File Save area, click the Save as drop-down menu.
4. Select the desired file format.
5. Click OK.

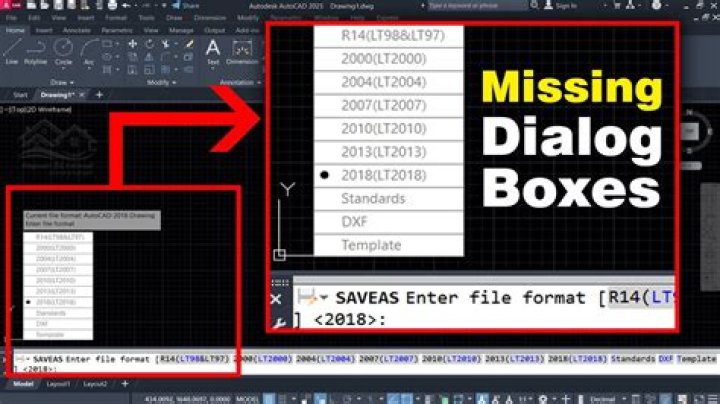

Why is my save as not working in AutoCAD?

It sounds as if your dialog boxes have been switched off. At the command line type in FILEDIA and make sure it is 1. If you think the dialog is being suppressed, type in FILEDIA and set it to 1.

What is Filedia command in AutoCAD?

Suppresses display of file navigation dialog boxes. Displays dialog boxes. However, if a script is active, an ordinary prompt is displayed. Prompts are also displayed if an AutoLISP or ObjectARX™ program is active.

Where did my dialog box go?

Here is how to fix it: After accessing the tool/command to open a dialog box/window, press [Alt]+[Spacebar], then press M, then press any arrow key on your keyboard. This will “stick” the dialog box/window to your cursor. Move the mouse around until the dialog box/window is placed where you want it located.

How do I move dialog box in AutoCAD?

Hold down the WINDOWS and SHIFT keys and then press the left or Right Arrow keys on the keyboard. This moves windows between screens and will pop the missing dialog into view. Use the keyboard to move the window into view.

How do I change the default save location in AutoCAD?

Do the following:

1. Right-click the AutoCAD shortcut icon located on the desktop and click Properties.
2. In the Start in field, enter the desired folder path (example: C:\Drawings).
3. Launch AutoCAD.
4. Type REMEMBERFOLDERS in the command line.
5. Enter 0 to turn it off.

Where can be ViewCube be found on the screen?

The ViewCube can be found in the upper right hand corner of the screen and you’ll notice as you hover your mouse closer to it, the navigation tools, along with the ViewCube, become brighter or more enabled.

Where is Save As in AutoCAD?

In AutoCAD LT, the SAVE and QSAVE commands are identical. The Save Drawing As standard file selection dialog box is displayed. In the Save Drawing As dialog box, click Tools: Options displays a dialog box that controls various DWG and DXF settings.

How do I reset a command line in AutoCAD?

Most of the time it is as simple as turning the Command Line back on. 1.) If your command line is off hold down the “Ctrl” button and while stilling holding this down select the “9” key on the Keyboard this should turn the Command Line back on.

What is selection dialog box?

The Common Desktop Enviroment file selection dialog box is a subclass of the Motif file selection dialog box that has enhancements for improved usability.

What is option dialog box?

The options dialog box is used to specify/modify many Origin global settings pertaining to numeric display, file path, text fonts, Excel workbook and Origin program opening and closing behaviors, etc.

What is a dialog box?

Message boxes. A message box is a dialog box that can be used to display textual information and to allow users to make decisions with buttons.
