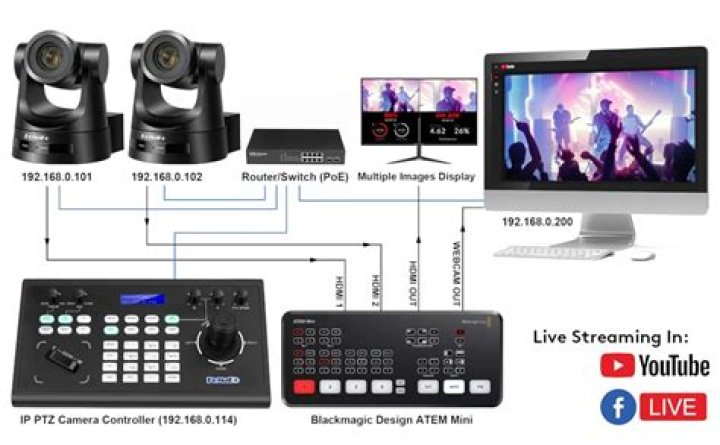

How do I connect my PTZ camera to my joystick?

Press the Cam 1 button.
Hold down the Setup button. (
Set cam 1 to be VISCA, 9600 baud rate.
Select Cam Set and press Enter.
Press enter while the joystick is blinking on Cam 1.
You should now be able to select VISCA as the Protocol, and 9600 as the baud rate.
Repeat this for any additional cameras.

What is RS232 camera?

RS-232 is a communications standard for serial communications between devices. In CCTV, this can be communication between a controller and a surveillance camera. The RS-232 standard allows for the connection of two devices through a serial link, and is the protocol used for serial connections in computers.

How do I connect my PTZ camera to my computer?

For PTZ camera, it has a RS485/422 port to plug in the control cable. In order to connect a PTZ camera to a computer, You need a RS485/RS232 or RS422/RS232 converter. If there is no RS232 port on your computer, you also can use a RS485/USB or RS422/USB converter.

How are PTZ cameras wired?

PTZ Analog Camera: Analog (CCTV) PTZ cameras use an analog video signal to capture surveillance footage, and are wired to digital video recorders (DVRs) via coaxial cables.

What is Visca IP?

VISCA over IP can process the VISCA communication between the controllers and peripheral devices using the messages that can be identified on the LAN, and sends/receives them. Because of this, VISCA over IP is not concerned about the contents of the communication between the controllers and peripheral devices.

How are PTZ cameras controlled?

PTZ cameras can be controlled in a variety of ways including an IR remote, a joystick controller, and software. Joystick controllers are generally connected to cameras in multiple ways include ethernet cabling and serial control cables.

How do I control my PTZ camera over the Internet?

Setup a VPN so that you can access devices on your local network from a remote-computer. Setup Port-Forwarding to forward your camera’s IP address and ports out to your externally accessible public IP address (you may need to request a static IP from your ISP for the best results with this method)

What is a PTZ controller?

A pan–tilt–zoom camera (PTZ camera) is a camera that is capable of remote directional and zoom control. In television production, PTZ controls are used with professional video cameras in television studios, sporting events, and other spaces. They are commonly referred to as robos, an abbreviation of robotic camera.

Do PTZ cameras need power supply?

All our PTZ Cameras can be set up using this basic guide. Generally speaking, PTZ Domes requires four things; 1- They require a power supply and a cable to supply this power to the dome. 2- They require a cable to get the video signal back to the monitor or recording device.

Is Visca the same as RS232?

It is based on RS232 Serial communications at 9600 bit/s, 8N1, no flow control typically though a DB-9 connector, but can also be on 8-Pin DIN, RJ45 and RJ11 connectors used in daisy chain configurations.

What is a PTZ joystick controller used for?

This PTZ Joystick Controller is designed for pan, tilt, and zoom control of SONY VISCA and PELCO-P/D compatible PTZ cameras. This controller is ideal for PTZOptics cameras used with serial joystick cabling ( see here) and can connect to most PTZ cameras with an 8-pin mini-din connection using a DB9 to 8-pin mini-din connection cable.

How do I control multiple PTZ cameras at the same time?

It now features six prominent buttons for quickly switching between cameras and advanced controls for opening up the camera’s OSD (On Screen Display) menu. Serial joystick control is the easiest way to control multiple PTZ cameras. Using tried and true serial control cabling, there is no need for an IP network.

What type of cabling is used for PTZ camera Cascade cabling?

Subsequent cameras use RS-232 VISCA Cascade cabling/PTZ camera cascade cabling. This method of daisy-chaining multiple PTZ cameras with a serial PTZ joystick controller is an ideal way to avoid having to “home run” cable to each camera.

How do I connect my camera to RS232?

RS-232 is achieved using 3 main signal connections; transmit, receive and ground. When you hook up from your joystick to your camera, you would only need to connect these 3 wires to achieve camera control. If you need to control more than one camera from a joystick you would need to daisy chain camera 1 to cam 2.
