How do I change the scale on Abaqus?

How do I change the scale on Abaqus?

Scaling deformations

1. From the main menu bar, select OptionsCommon. Click the Basic tab in the dialog box that appears.
2. Choose one of the following scale factor options:
3. Click Apply to implement your changes.

How do you scale a part in Abaqus?

From the main menu bar, select Options Common or Superimpose; then click the Other tab in the dialog box that appears. Click the Scaling tab; the Scaling options appear. Toggle Shrink elements to request or suppress shrinking each element about its centroid.

How do you get Abaqus results?

From the main menu bar, select ResultField Output to examine the variables that are available for display. Abaqus/CAE displays the Field Output dialog box; click the Primary Variable tab to choose which variable to display and to select the invariant or component of interest.

What is mass scaling in Abaqus?

Mass scaling is often used in Abaqus/Explicit for computational efficiency in quasi-static analyses and in some dynamic analyses that contain a few very small elements that control the stable time increment. Mass scaling can be used to: scale the mass at the beginning of the step and/or throughout the step.

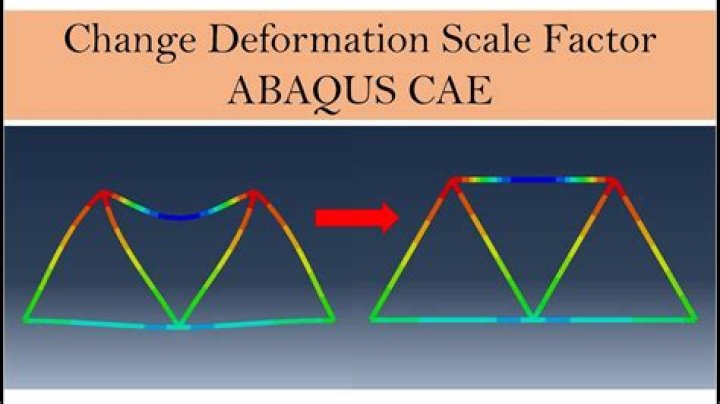

How do you change a deformation scale factor?

Change the deformation scale factor

1. From the main menu bar, select OptionsCommon; or use the tool in the toolbox.
2. From the Common Plot Options dialog box, click the Basic tab if it is not already selected.
3. From the Deformation Scale Factor area, toggle on Uniform and enter 10.0 in the Value field.

What is deformation scale?

The deformation scale refers to the scale factor that the program uses to scale the deformed shape of the model. A larger deformation scale factor helps you visualize deflections that are a lot smaller compared to the original dimensions of the model.

How do I get xy data from Abaqus?

Specify your X–Y data.

1. From the main menu bar, select ToolsXY DataCreate. The Create XY Data dialog box appears.
2. Choose the source of your data from the list, and click Continue. Abaqus displays the appropriate dialog box.
3. Enter the necessary data or information in the dialog box.

How do I use XY data in Abaqus?

To operate on saved X–Y data objects: Locate the Operate on XY Data dialog box. From the main menu bar, select Tools XY Data Create. Click Operate on XY data in the dialog box that appears; then click Continue. The Operate on XY Data dialog box appears.

What is time scaling in Abaqus?

According to abaqus help, time scaling factor is acceptable for explicit analysis if kinetic energy is one-tenth(0.1) of total energy in job results table. So if you use time scaling in an impact analysis, basically you increase the mass of the structure, which will change the dynamic behavior of the problem.

What is mass scaling?

Mass-scaling refers to a technique whereby nonphysical mass is added to a structure in order to achieve a larger explicit timestep. One can employ mass scaling in a selective manner by artificially increasing material density of the parts you want to mass-scale.

What is a deformation scale?

How do you edit legends in Abaqus?

Choose the color of the legend text.

1. Click the color sample . Abaqus/CAE displays the Select Color dialog box.
2. Use one of the methods in the dialog box to select a new color. For more information, see Customizing colors.
3. Click OK to close the Select Color dialog box. The color sample changes to the selected color.
