Can you calculate arc length with degrees?

Can you calculate arc length with degrees?

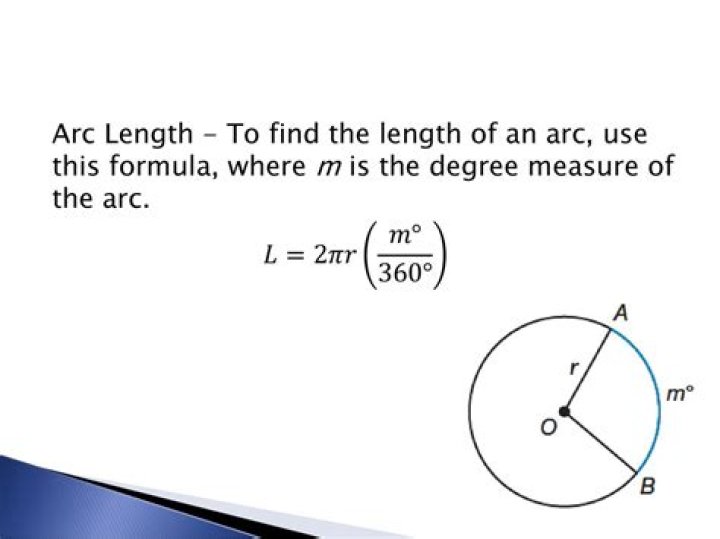

A circle is 360° all the way around; therefore, if you divide an arc’s degree measure by 360°, you find the fraction of the circle’s circumference that the arc makes up. Then, if you multiply the length all the way around the circle (the circle’s circumference) by that fraction, you get the length along the arc.

How do you find the length of an arc without an angle?

How do you calculate arc length without the angle?

1. Divide the chord length by double the radius.
2. Find the inverse sine of the result (in radians).
3. Double the result of the inverse sine to get the central angle in radians.
4. Once you have the central angle in radians, multiply it by the radius to get the arc length.

How do you find the length of an arc in Autocad?

To Create an Arc Length Dimension

1. Click Annotate tab Dimensions panel Dimension.
2. Hover over an arc or an arc segment in a polyline.
3. At the prompt, enter L (Arc Length).
4. Select the arc or the arc segment in a polyline.
5. Click to place the dimension line.

How do you find the central angle with arc length and radius in degrees?

(arc length) ÷ circumference = (central angle) ÷ 360° The central angle will be in degrees. This formula makes sense, if you think about it.

What is the length of a 45 degree arc?

Let’s say it is equal to 45 degrees, or π/4. Calculate the arc length according to the formula above: L = r * θ = 15 * π/4 = 11.78 cm .

How do you calculate arc length from radius?

To find the arc length, set up the formula Arc length = 2 x pi x radius x (arc’s central angle/360), where the arc’s central angle is measured in degrees.

Which command is used to find the length of arc?

DIMARC (Command) Creates an arc length dimension. Arc length dimensions measure the distance along an arc or polyline arc segment.

How do you find the length of an arc in terms of pi?

What’s the measure of an arc with a central angle of 90?

A central angle of 90 degrees is one quarter of a circle so the length of the arc sub tended by that angle is one quarter of the circumference or 1.5 * pi.
