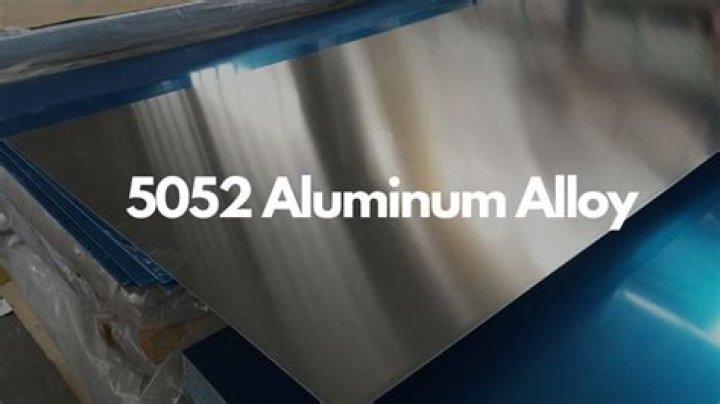

Can you bend a 5052 aluminum?

Can You Bend 5052 Aluminum? Aluminum alloy 5052 is a good candidate for bending. While the elongation isn’t as high as the 3003 aluminum alloy, you still see a big difference between yield and tensile strength.

Can you bend 5052 H32 aluminum?

5052-H32 is optimal for sheet metal work because of its ability to allow for a tight radius while bending. 5052-H32 contains 2.5% magnesium. It is one of the highest strength alloys of the non-heat treatable grades.

How do you find the minimum bend radius?

Minimum Bend Radius Calculation Example According to Table 1, the minimum bend radius is found to be six times the cable’s overall diameter. The overall diameter of the cable is given as 2.08 inches in the product catalog. Multiplying 2.08 inches by six, we get 12.48 inches.

What grade of aluminum tubing is bendable?

Aluminium alloy 3003. In most cases, this is probably the best alloy for bending. You get average strength, very good cold workability and high elongation. It also offers one of the biggest differences between yield and tensile strength.

Can you bend 6082 Aluminium?

6082 is often used for architectural applications. This grade is highly corrosion resistant and has good formability. Greater formability for bending aluminium tubing can be achieved through an annealing process where aluminium can be brought to a zero temper. The bending takes place between three points.

Can you bend 5005 Aluminium?

Indicative Minimum Bend Radii Machinability 5005 is readily machinable by conventional methods. It should be machined at high speed with copious lubrication to avoid thermal distortion of the workpiece.

What is minimum bending radius of cables?

The minimum bending radius for cables with shielded conductors is twelve times the diameter of one phase conductor or seven times the overall diameter, whichever is greater.

When working with aluminum MC cable the bending radius is measured to what part of the cable bend?

According to NEC Article 320.24, for AC cable, the radius of the curve of the inner edge of any bend shall not be less than 5 times the diameter of the cable. NEC Article 330.24(B) states that for MC Cable, the radius shall not be less than 7 times the external diameter of the cable.

How strong is 5052 aluminum?

5052 aluminum alloy has a yield strength of 193 MPa (28,000 psi) and an ultimate tensile strength of 228 MPa (33,000 psi), which means it is moderately strong when compared to other some popular alloys.

How do you bend extruded aluminum?

In the hydraulic rotary draw bending process, manufacturers place extruded aluminum onto a bender and hold it in place with a stationary or sliding pressure die and clamping block. The round bending die, powered by hydraulics, is rotated up to 90 degrees, bending the extrusion as it rotates.

Can you bend aluminum tubing?

You can bend 1 1/4″ aluminum conduit by hand, but a manual pipe bender will make it easier. It doesn’t matter what you use to bend the pipe, the main thing is how you keep it from collapsing. Fill the pipe with sand or other material, and secure three layers of window screening, with double hose clamps on the ends.

What is the minimum bend radius of aluminum?

ALUMINUM – Recommended Minimum Bend Radius for maximum strength THICKNESS OF ALUMINUM MATERIAL .012 .016 .020 .025 .032 .040 .050 .063 .071 .080 .090 .100 .125

What is the thickness of 5052?

Alloy 5052 is also produced as a treadplate(also known as chequer plate) with mainlyindustrial applications. Stucco finish sheet is produced typically in 1.0– 1.5mm thickness. The alloy is also produced as drawn seamlesstube, wire and bar and foil, available on indentfrom Atlas.

How do you harden alloy 5052?

Alloy 5052 is not hardenable by heattreatment. It can be significantly hardened bycold work (eg by cold rolling) and various “H”tempers are produced – most commonly H32(¼Hard) and H34 (½ Hard) – as well as thesoft annealed Temper O condition.
