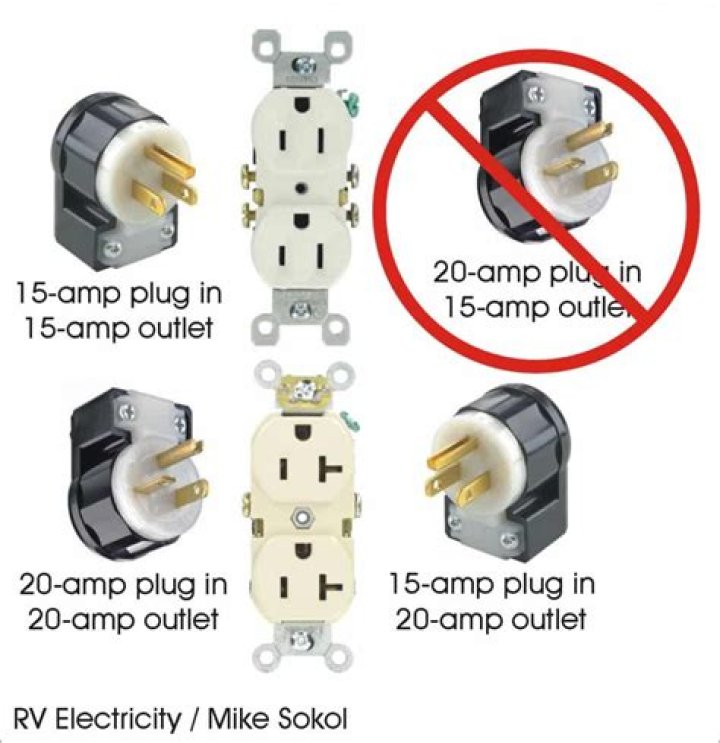

Can I use a 20 amp plug on a 15 amp circuit

If your question is “can I connect a receptacle rated for 20 amps to a circuit designed for 15 amps?”, the answer is yes, because the receptacle can handle more current than the circuit is rated for. If you exceed 15 amps, the breaker will blow, and protect the receptacle.

Can you plug a 15 amp device into a 20 amp outlet?

The average household electrical receptacle has a 15-amp rating, but it can connect to a 20-amp circuit. A device that has a 15-amp plug can be used. A 20-amp receptacle is for heavy-duty appliances and power tools.

Can I use a 15 amp plug at home?

The other reason you can’t plug your 15A heavy duty power cord into your home power point? 15A power leads sockets and leads have a larger earth pin. They won’t fit in a standard home 10A power point.

Should I use 15A or 20A outlets?

Since a majority of 125vac consumer products, commercial equipment and light industrial machinery require less than 15A, 15A plugs are provided on their power cords as well. The NEC requires that a 20A receptacle is installed on a 20A branch circuit when there is only one receptacle connected to that circuit.

Can I put a 15A GFCI outlet on a 20A circuit?

4 Answers. Yes you can. Having the GFCI marked 20 Amp is so the one model can be used for either type of circuit. If you have a 20 Amp Circuit then there is no problem with using 15 Amp receptacles on the same run.

What uses a 15 amp plug?

The most common electrical outlets are 15-amp duplex receptacles — 15-amp outlets are designed to accept standard plugs for most small appliances and lamps. If you want to replace an outlet, simply turn off the power to the outlet and remove it.

Can you use a 15A light switch on a 20A circuit?

You can’t use a single receptacle on a single branch circuit. In the case of a branch circuit, a 20 amp circuit will work really well! … In short, a 15 amp switch can be used all over a 15 amp circuit. But for a 20 amp circuit, the outlet has to be a singular 15 amp one.

What is the difference between 15a and 20a GFCI?

There are different pin configurations for 15a and 20a receptacles. A 20a receptacle has one slot that is turned sideways or T shaped to allow a 20amp plug to be used. A 15amp receptacle won’t overload the circuit. Only 15a devices will be allowed to be plugged in.

How many sockets can be on a 15 amp circuit?

Technically, you can have as many outlets on a 15 amp circuit breaker as you want. However, a good rule of thumb is 1 outlet per 1.5 amps, up to 80% of the capacity of the circuit breaker. Therefore, we would suggest a maximum of 8 outlets for a 15 amp circuit.

Can lighting be on a 20 amp circuit?

Putting light fixtures on a 20-amp breaker is completely fine, according to the regulations of NEC. However, circuits with large kitchen appliances, washers, and devices with a dedicated circuit are part of the code’s prohibition.

Article first time published on

What is a 20 Amp switch used for?

20 amp Double Pole Switches are generally used with Electrical appliances that need to be hard-wired as opposed to using a Plug and Socket. They are usually protected by a fuse or circuit breaker in a consumer unit or fuse board.

What needs a 20 amp circuit?

Large consumers, especially kitchen appliances, such as microwaves, blenders and toasters, need a dedicated 20 amp circuit, to ensure a constant energy flow, which means they cannot share the circuit with other devices.

Can I use a 20 amp outlet on a 20 amp breaker?

As long as the wire connecting the two devices has a rating meeting or exceeding 20 amps, (12 awg or larger) it is acceptable to install a 20 amp receptacle on a 20 amp circuit breaker.

Can I use 20 amp outlet?

The amperage of the outlet must never exceed the amperage of the circuit. According to National Electrical Code, only a 15-amp or 20-amp electrical receptacle can be installed to a 20-amp circuit. … However, a 20-amp GFCI outlet may not be installed to a 15-amp circuit.

How many appliances can be on a 20 amp circuit?

The answer to the question how many outlets on a 20 amp circuit is ten outlets. Always comply with the 80% circuit and breaker load rule, allowing a maximum load of 1.5 amps per receptacle. Remember that your circuit, wire sizes, and outlets must be compatible to avoid overheating and electrical hazards.

How many amps does a TV use?

Domestic Portable ApplianceAmps UsedWatts UsedDesktop computer1.3Up to 300Television 55” UHD<0.5120Games console0.86200Washing machine102200

Can I wire lights and outlets on the same circuit?

Yes, you can. The average home uses an indoor distribution board that houses the breakers of the majority of circuits in the home. A circuit controlled by a 15A circuit breaker (which a lot of contractors use for general lighting) can also accommodate outlets.

Can you replace a 20 amp breaker with a 15 amp breaker?

You can upgrade your breaker to a higher amperage-rated breaker as long as the wiring in the circuit is of the correct gauge. A 12-gauge wire is required for a 20-amp circuit breaker.

What is code for installing electrical outlets?

The US National Electrical Code, Section 210.52, states that there should be an electrical outlet in every kitchen, bedroom, living room, family room, and any other room that has dedicated living space. They must be positioned at least every twelve feet measured along the floor line.

How many lights can I run off a 20 amp breaker?

You can put up to 40 lights (based on 50 watt light) on a 20 amp breaker.

Can I use 14 gauge wire on a 20 amp circuit?

14 AWG must be protected at 15A, according to NEC 240.4(D)(3). 14 AWG can’t be used on a circuit with a 20A breaker. The screw terminals are the better choice if you want to put 15 Amp receptacle on a 20 Amp circuit with 12 gauge wire. You can use the side terminals.

How many Christmas lights can you have on a 20 amp circuit?

For a 20-watt strand, that’s 10.5 string lights connected in series. Don’t forget to sum the wattage you’re plugging into each outlet on the circuit, making sure not to exceed maximum wattage (1,440/1,920).

What is the difference between a 15 amp and 20 amp switch?

Light Switch Types Most residential switches are rated at 15 amps, whereas industrial and residential switches usually are rated at 20 amps. Additionally, industrial and residential switches are made with sturdier components. Dimmers: A dimmer is a kind of switch that can raise and lower the brightness of a light.

Do I need a 20 Amp switch?

Article 404.14(F) Cord- and Plug-Connected Loads. So, basically the switch needs to be a 20 amp switch for multiple receptacles on a 20 amp circuit. This is because you can’t assure that the overall load won’t exceed 15A.

Can you put a 20 amp double pole switch on a ring main?

20 Amp switches have no place on a ring circuit. They are for things like immersions and storage heaters. Use a FCU to control socket-outlet, or better still, a unfused flex outlet for the appliance, so you won’t have two fuses in-line.

Can I use all 20 amp breakers?

The circuit breakers in the electrical panel in your house are safety devices. … Electrical outlets don’t draw power until you plug something in, so a 20-amp circuit should theoretically be able to handle as many outlets as you want without overloading the breaker.
