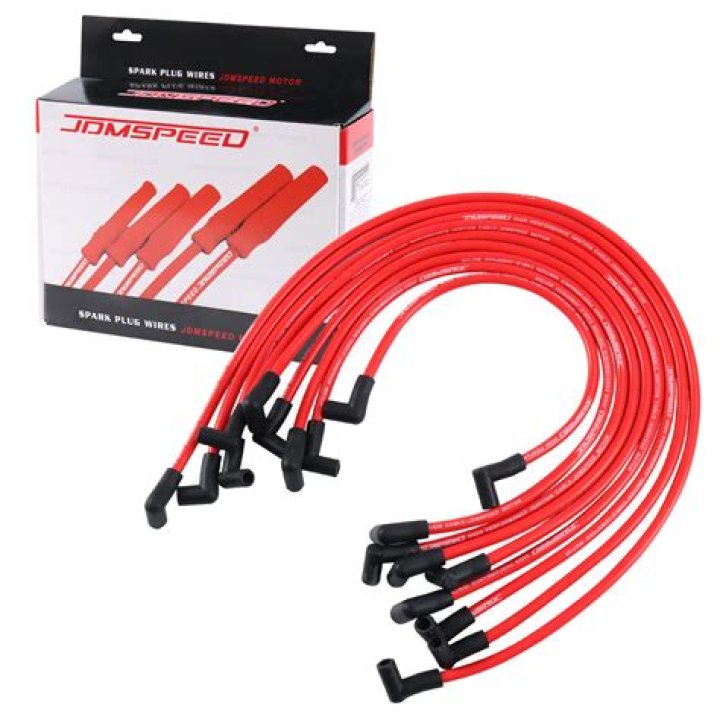

Can an ignition cable spark plug cable be tested?

Can an ignition cable spark plug cable be tested?

Use a digital or analogue multimeter (or ohmmeter) to check if the resistance of each spark plug wire is within the manufacturers’ guidelines. To do this, set the multimeter to the appropriate scale and measure the wire by placing the probes on each end of the wire lead, making sure they touch the metal contacts.

How do I know if my ignition lead is bad?

Usually faulty ignition cables will produce a few symptoms that can alert the driver of a potential issue.

1. Decrease in power, acceleration, and fuel efficiency. One of the most common symptoms of an issue with the ignition cables is engine performance problems.
2. Check Engine Light comes on.
3. Visible wear or damage to cables.

How many ohms should a good spark plug wire have?

The Society of Automotive Engineers suggests the maximum resistance should be 12,000 ohms-per-foot. However, some OEMs have recommended different maximum resistances. Consult a tune-up manual for exact specifications.

How many ohms should a spark plug have?

When spark plugs are new, the resistance value is between 500 and 3000 ohms. As the plug ages, values below 5000 ohms are acceptable. But once the plug’s resistance value exceeds 5000 ohms, the plug should be replaced. If a spark plug falls off a workbench or is dropped, it’s possible for the carbon resistor to break.

How do you know if your spark plug wires are bad?

Common signs of failing spark plug wires include a decrease in power, acceleration, and fuel efficiency. In addition, the engine light coming on or visible damange to the cables can be signs of a failing wire.

What are the signs of bad spark plug wires?

The following are common signs that your spark plug wires have issues.

• Visible Damage on the Spark Plug Wires. Spark plug wires may start to dry out over time, so look for cracks in the insulation.
• The Engine is Idling Rough.
• Engine Hesitation.
• Engine Misfiring.

Why do ignition leads have resistance?

The resistance of many wires is measured in ohms per foot. Lower resistance means more of the ignition coils energy is going towards bridging the gap or the spark plug. That hotter spark can create a more even burn of the fuel/air mixture in the cylinder, and thus, more power output from the engine.

How do you use a spark Tester on an ignition system?

Use this ignition spark tester to check the condition of the ignition system at each cylinder. The spark tester connects between the spark plug and spark plug wire to troubleshoot dirty spark plug connections, defective points and bad cables or connections.

How do I use the ignition diagnostic tool?

Quickly diagnose problems with all ignition systems. Connect the tool between the spark plug and the plug wire. The tool is double-ended to offer a straight boot and a 90° boot on one tool. With the engine running, the tool flashes a mirror image of ignition spark. How can we improve our product information? Provide feedback.

How to see spark and intensity on a spark plug test?

Easy to see spark and intensity… Tests spark plugs, spark plug wires and coils without puncturing the wire. With the engine running, place the grooved end of the tool over the plug wire. The bulb will flash to indicate spark. See Full Product Description
